19 Wall Recessed & Inground > Wall Recessed Pro Range
68072C/W

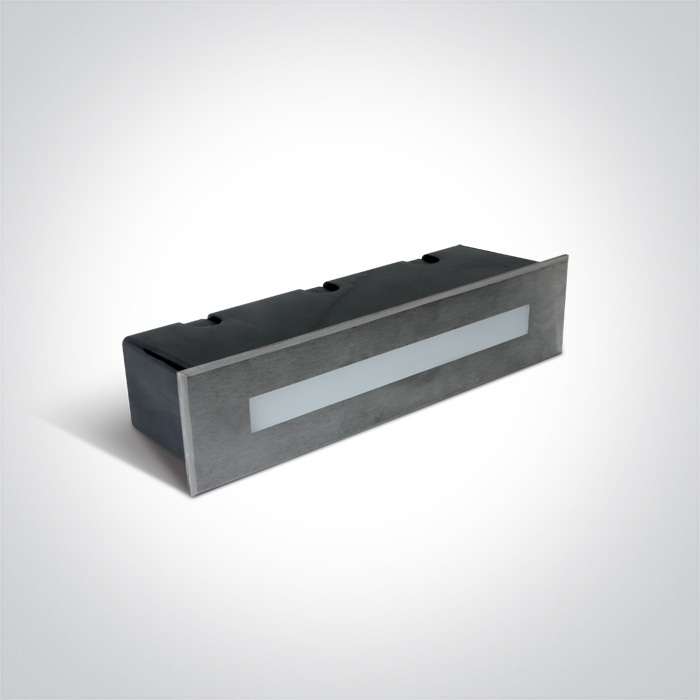

10W LED wall recessed light, IP65, ideal for both indoor
and outdoor installation.
Complete 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.
Complete 350mA driver.
Supplied with box for concrete installation
Complies with standard EN60598-1 and any other specific standards.

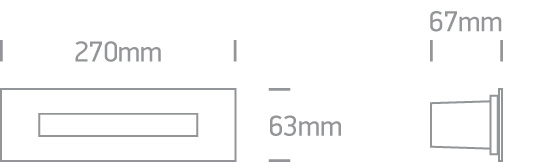

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
Wall Recessed Pro Range
Order Code
68072C/W
Colour
Stainless Steel
Material
Stainless Steel 316
Diffuser Material
Glass
Shape
Rectangular
Length
270mm
Width
63mm
Height
67mm
Cutout Hole Width
253mm
Cutout Hole Height
55mm
Recessed wall
Yes
Depth Required
75mm
Indoor
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
26V
Safety Class
Power (Watts)
9,1W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Edison
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6-9W
Power Factor
0,5
Constant Current
Yes
350mA
17-26V
IP Rating
IP20
Safety Class
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
200lm
Light Efficiency
20lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
9cm
Box Width
7,5cm
Box Height
29cm
Box Weight
1.275kg
Pcs/Carton
12
Barcode
5291889057734
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
