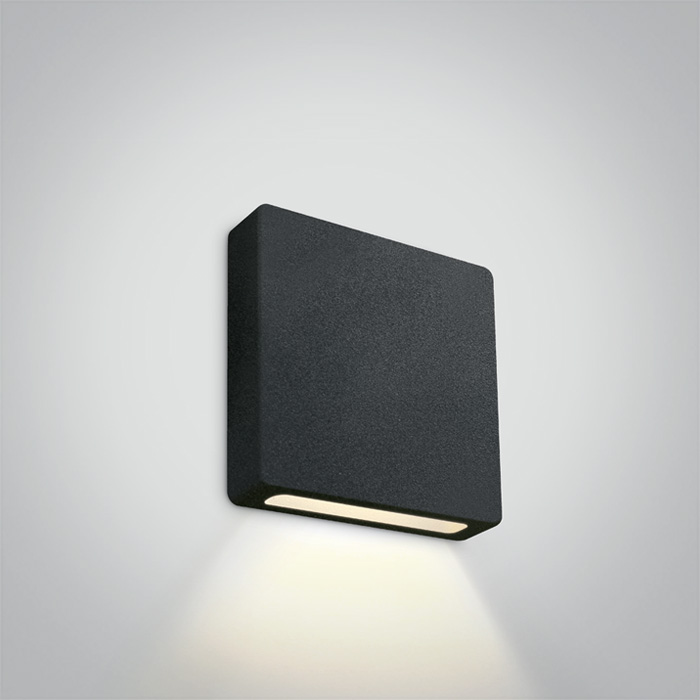

19 Wall Recessed & Inground > Dark Light Step Series Aluminium
68074A/B/W
2W 700mA LED wall recessed light, IP65, ideal for both indoor
and outdoor installation.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
Dark Light Step Series Aluminium
Order Code
68074A/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
50mm
Width
50mm
Height
45mm
Cutout Hole Diameter
35mm
Recessed wall
Yes
Depth Required
55mm
Indoor
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
2W
IP Rating
IP65
Light Source
LED built in
LED Brand
Osram
Cable Length
200cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
100lm
Light Efficiency
50lm/W
CRI
90
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
6,5cm
Box Width
6,5cm
Box Height
6,5cm
Box Weight
0.169kg
Pcs/Carton
100
Barcode
5291889058472
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
