19 Wall Recessed & Inground > The Inground Midi Series Natural Aluminium

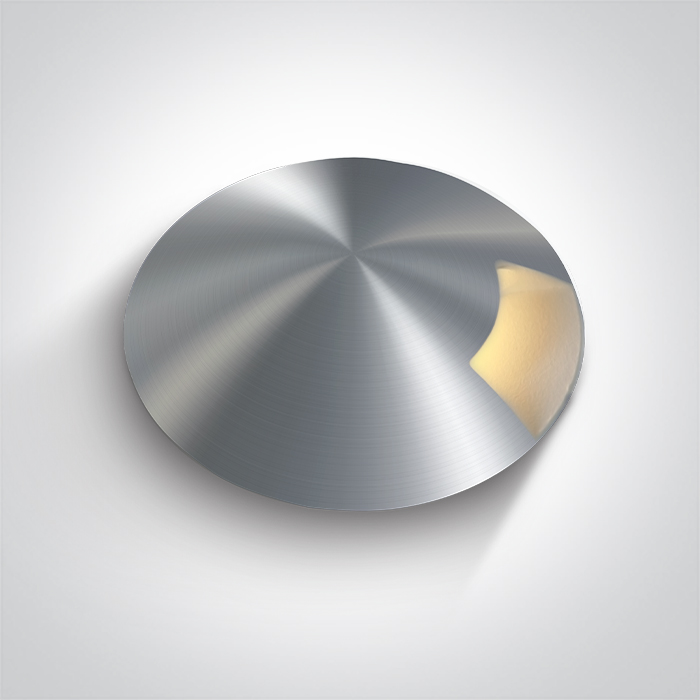

69015A/AL/W
3W LED inground, aluminium, for path illumination, IK08, IP67.
Requires 24V DC driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 24V DC driver.
Complies with standard EN60598-1 and any other specific standards.

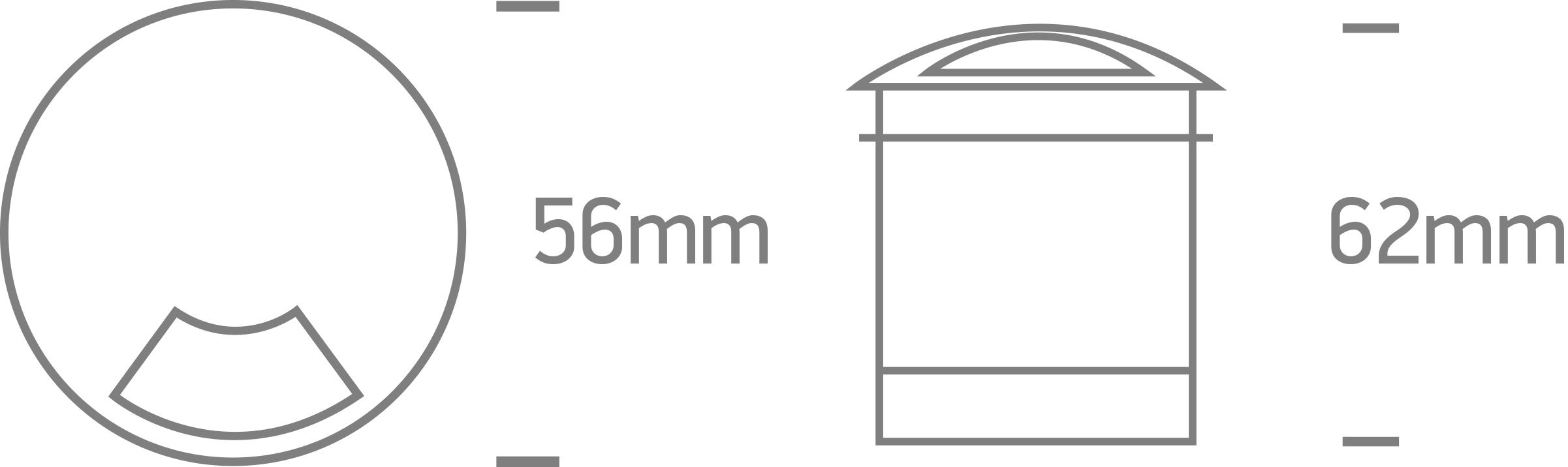

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
The Inground Midi Series Natural Aluminium
Order Code
69015A/AL/W
Colour
Aluminium
Material
Natural Aluminium
Shape
Circular
Height
62mm
Diameter
56mm
Cutout Hole Diameter
52mm
Inground
Yes
Depth Required
90mm+300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
3W
IP Rating
IP67
Light Source
LED built in
Cable Length
200cm
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
30lm
Light Efficiency
10lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.350kg
Pcs/Carton
32
Barcode
5291889077596
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Year in which the CE mark was affixed
23
