19 Wall Recessed & Inground > The Dark Light Inground Range Aluminium

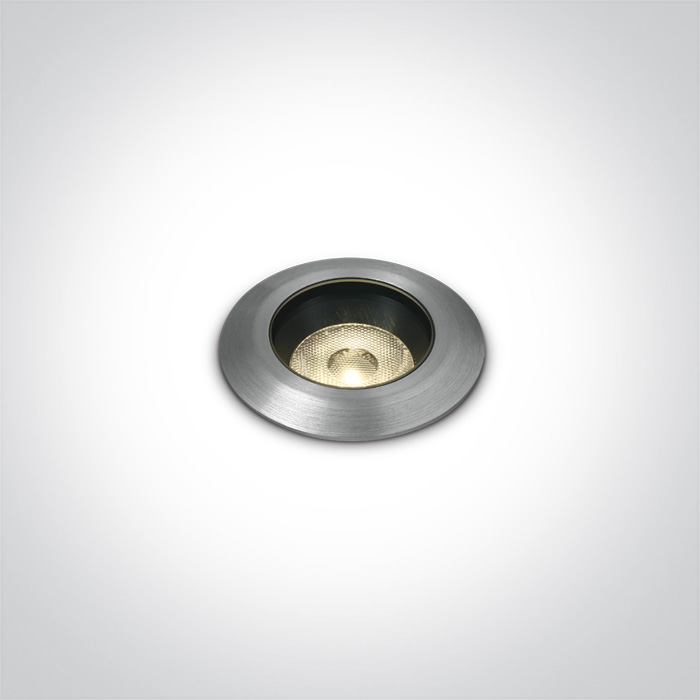

69056A/W
3W COB LED inground, IP67.
Requires 24V driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 24V driver.
Complies with standard EN60598-1 and any other specific standards.

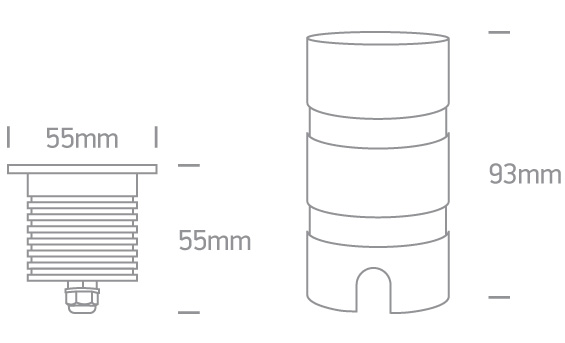

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
The Dark Light Inground Range Aluminium
Order Code
69056A/W
Colour
Aluminium
Material
Natural Aluminium
Diffuser Material
Glass
Shape
Circular
Height
55mm
Diameter
55mm
Cutout Hole Diameter
50mm
Inground
Yes
Depth Required
100mm + 300mm drainage
Indoor
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
3W
IP Rating
IP67
Light Source
LED built in
LED Type
COB
LED Brand
Prolight
Cable Length
200cm
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
240lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.320kg
Pcs/Carton
50
Barcode
5291889064275
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
