19 Wall Recessed & Inground > The Dark Light Inground Range Aluminium

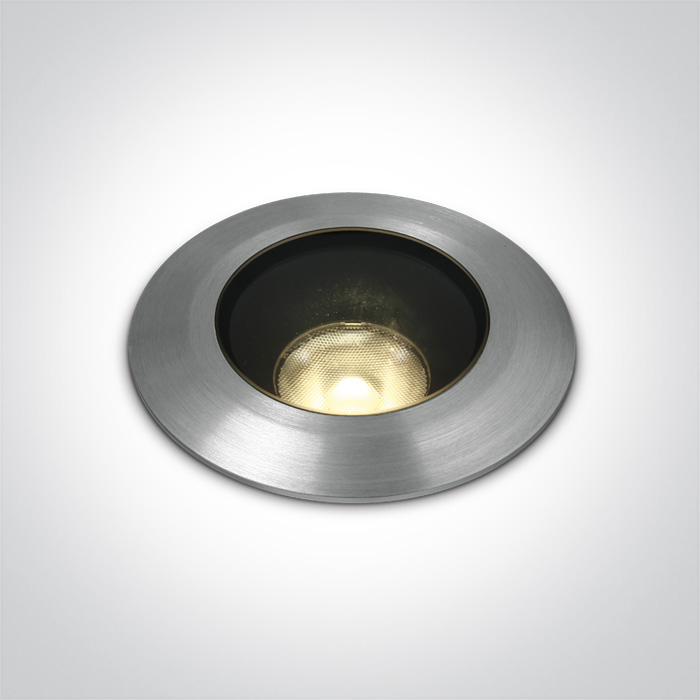

69056C/W
9W COB LED inground, IP67.
Requires 24V driver.
Complies with standard EN60598-1 and any other specific standards.
Requires 24V driver.
Complies with standard EN60598-1 and any other specific standards.

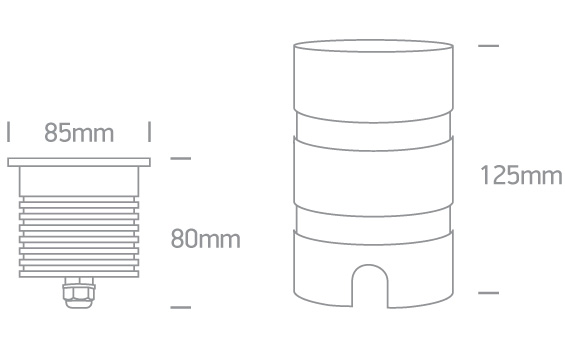

Dimensions
Downloads
Physical Specification
Item Group
19 Wall Recessed & Inground
Family
The Dark Light Inground Range Aluminium
Order Code
69056C/W
Colour
Aluminium
Material
Natural Aluminium
Diffuser Material
Glass
Shape
Circular
Height
80mm
Diameter
85mm
Cutout Hole Diameter
70mm
Inground
Yes
Depth Required
135mm + 300mm drainage
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
9W
IP Rating
IP67
Light Source
LED built in
LED Type
COB
LED Brand
Prolight
Cable Length
200cm
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
720lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.679kg
Pcs/Carton
24
Barcode
5291889064299
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
