20 Garden & Underwater > The LED Underwater Range Stainless steel
69066M/C
0,3W underwater LED spot, IP68.
Underwater only / 2m max depth.
Requires 24V driver.
Complies with standard EN60598-1 and any other specific standards.
Underwater only / 2m max depth.
Requires 24V driver.
Complies with standard EN60598-1 and any other specific standards.

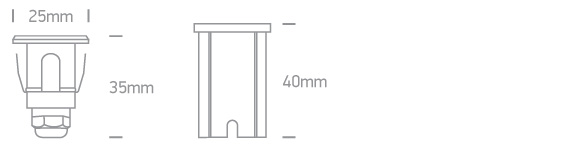

Dimensions

Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
The LED Underwater Range Stainless steel
Order Code
69066M/C
Colour
Stainless Steel
Material
Stainless Steel 316
Shape
Circular
Height
35mm
Diameter
25mm
Cutout Hole Diameter
22mm
Recessed wall
Yes
Inground
Yes
Underwater
Yes
Depth Required
45mm
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class

Power (Watts)
0,3W
IP Rating
IP68
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
1
Cable Length
500cm
Illumination Data
Colour Temperature
4000K
Lumen Output
30lm
Light Efficiency
100lm/W
CRI
80
Illumination Diagram

Packing Info
Box Weight
0.168kg
Pcs/Carton
50
Barcode
5291889072485
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
