21 Industrial & Floodlights > Street Lighting
70114/B/W

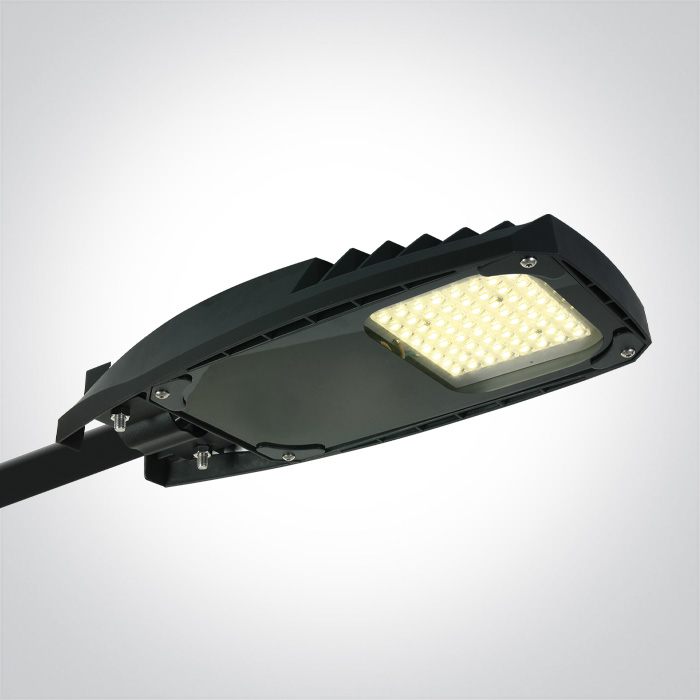

LED street light with SMD LED. High lumen output ideal for
replacement of old HPS and mercury street lighting fittings.
Post Diamerer 60mm.
Complete with 950mA driver.
Complies with standard EN60598-1 and any other specific standards.
Post Diamerer 60mm.
Complete with 950mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
21 Industrial & Floodlights
Family
Street Lighting
Order Code
70114/B/W
Colour
Black
Material
Plastic
Shape
Rectangular
Length
400mm
Width
190mm
Height
74mm
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP66
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Fitting
Input Type
Constant Current
Input Current
950mA
Voltage
50V
Power (Watts)
47,5W
IP Rating
IP66
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Smalite
LED Number
64
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
23,75-53,2W
Power Factor
0,9
Constant Current
Yes
950mA
25-56V
IP Rating
IP67
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
6800lm
Light Efficiency
136lm/W
CRI
80
Beam Angle
140°x80°
Illumination Diagram
Packing Info
Box Weight
3.050kg
Pcs/Carton
6
Barcode
5291889075165
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
5 Years
Average Lifetime
50000hours
Wee Directive
Yes
Year in which the CE mark was affixed
22
