21 Industrial & Floodlights > Street Lighting

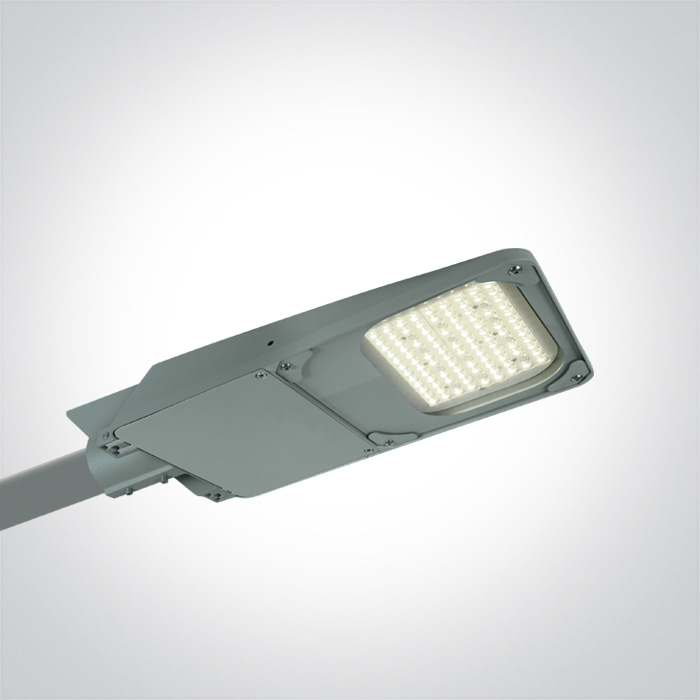

70116B/G/C
LED street light with SMD LED. High lumen output ideal for
replacement of old HPS and mercury street lighting fittings.
Post Diameter 60mm.
Complete with 968mA driver.
Complies with standard EN60598-1 and any other specific standards.
Post Diameter 60mm.
Complete with 968mA driver.
Complies with standard EN60598-1 and any other specific standards.

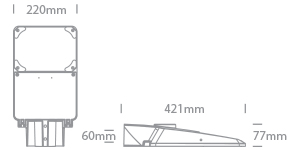

Dimensions

Downloads
Physical Specification
Item Group
21 Industrial & Floodlights
Family
Street Lighting
Order Code
70116B/G/C
Colour
Grey
Material
Aluminium + Glass
Shape
Rectangular
Length
421mm
Width
220mm
Height
77mm
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
No
IK Rating
9
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class

Power (Watts)
75W
IP Rating
IP66
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark

Fitting
Input Type
Constant Current
Input Current
968mA
Voltage
75V
Power (Watts)
72,6W
IP Rating
IP66
Light Source
LED built in
LED Type
SMD 3030
LED Brand
Seoul
LED Number
96
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
52,27-104,54W
Power Factor
0,96
Constant Current
Yes
Voltage Range
54-108V
Output
968mA
IP Rating
IP67
Safety Class

Dimmable
No
Housing Material
Metal
Output Terminal
Connector
Illumination Data
Colour Temperature
4000K
Lumen Output
10500lm
Light Efficiency
140lm/W
CRI
80
Beam Angle
140°x80°
Illumination Diagram

Packing Info
Box Weight
4.100kg
Pcs/Carton
1
Barcode
5291889073994
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 Years
Average Lifetime
50000hours
Wee Directive
Yes
Year in which the CE mark was affixed
22
