20 Garden & Underwater > The 20W COB Garden Spots Aluminium
7047/AN/W

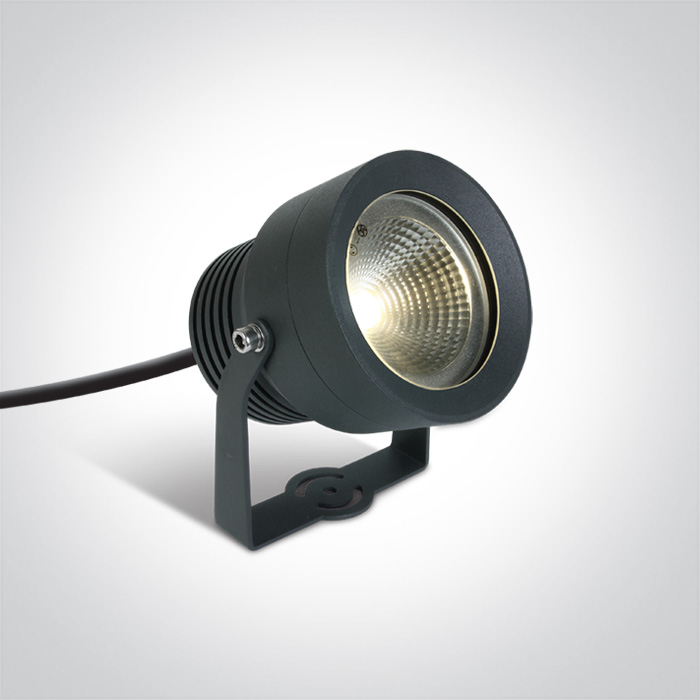

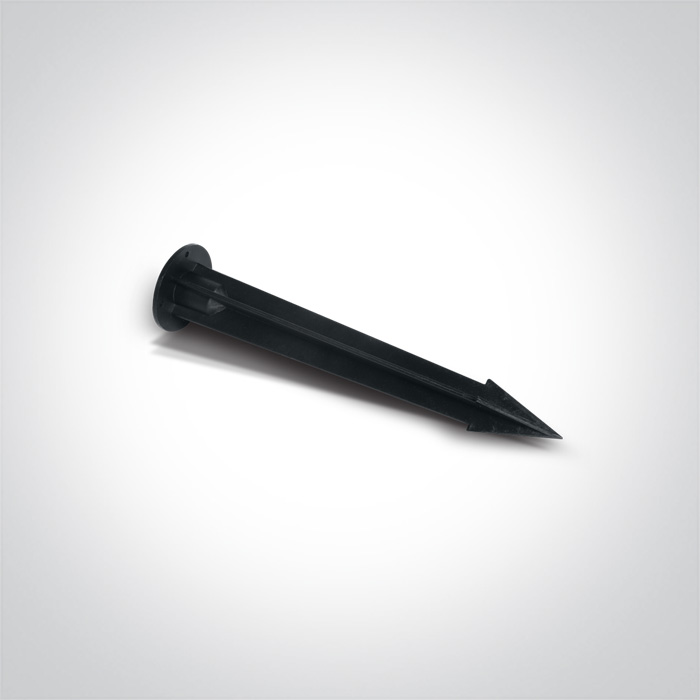

20W LED spot, IP65, supplied with spike, for garden illumination.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
The 20W COB Garden Spots Aluminium
Order Code
7047/AN/W
Colour
Anthracite
Material
Aluminium
Diffuser Material
Glass
Shape
Circular
Height
130mm
Diameter
114mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
150cm
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
38V
Power (Watts)
19W
IP Rating
IP65
Light Source
LED built in
LED Type
COB
LED Brand
Edison
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,5-21W
Power Factor
0,9
Constant Current
Yes
500mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
55°C
Operating Temp
85°C
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
1800lm
Light Efficiency
90lm/W
CRI
80
Beam Angle
50°
Illumination Diagram
Packing Info
Box Length
14cm
Box Width
13cm
Box Height
26cm
Box Weight
1.887kg
Pcs/Carton
8
Barcode
5291889040125
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
50000hours
Wee Directive
Yes
Year in which the CE mark was affixed
15
