21 Industrial & Floodlights > The LED Wall Washers Aluminium
7055A/W

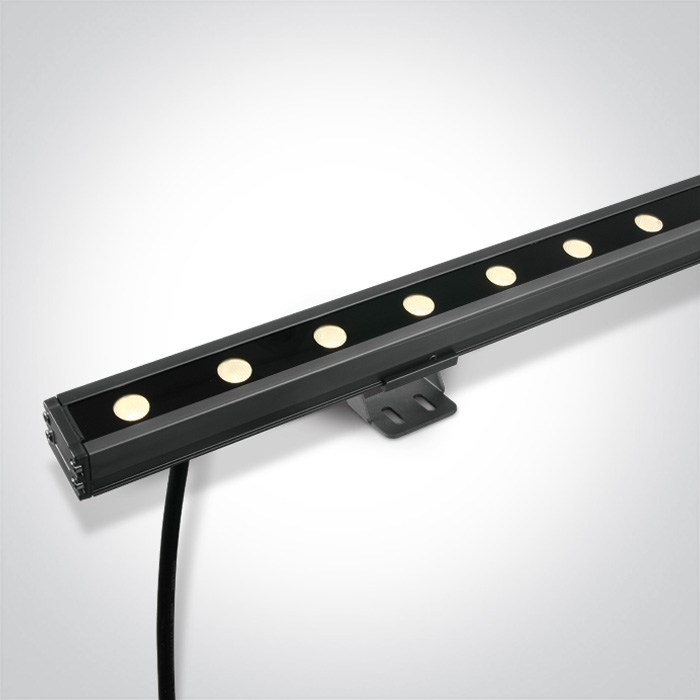

12x1W LED Wall Washers.
Connect Maximum 10pcs.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Connect Maximum 10pcs.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
21 Industrial & Floodlights
Family
The LED Wall Washers Aluminium
Order Code
7055A/W
Colour
Grey
Material
Aluminium
Shape
Rectangular
Length
500mm
Width
31mm
Height
60mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
12W
IP Rating
IP66
Light Source
LED built in
LED Type
COB
LED Brand
Osram
LED Number
12
Cable Length
100cm supply cable + 15cm cable male + 15cm cable female
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
850lm
Light Efficiency
70,83lm/W
CRI
80
Beam Angle
60°x20°
Illumination Diagram
Packing Info
Box Weight
0.833kg
Pcs/Carton
12
Carton Length
103cm
Carton Width
28cm
Carton Height
20cm
Carton Weight
22,9Kg
Barcode
5291889057253
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
