21 Industrial & Floodlights > The LED High Power Box Aluminium

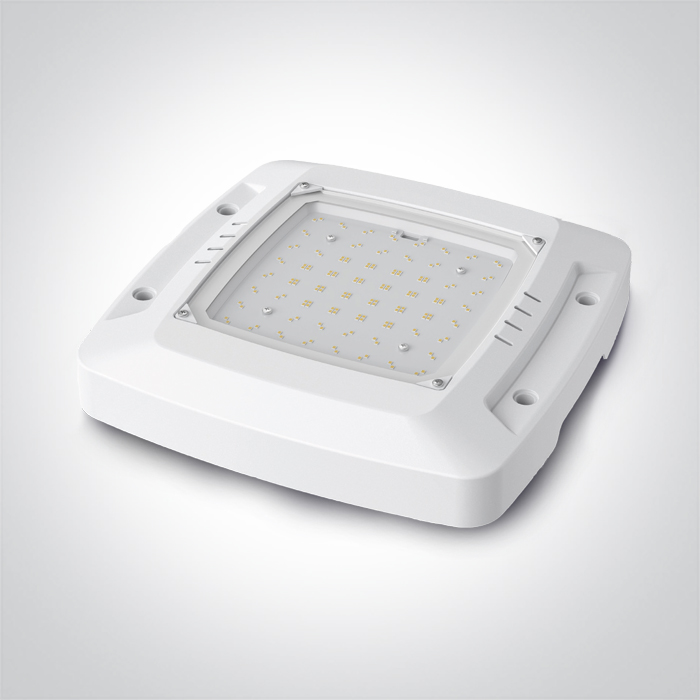

7058A/W/V
Power and CCT adjustable high power box. IP65.
Ideal for petrol stations, showrooms & warehouses.
Complies with standard EN60598-1 and any other specific standards.
Ideal for petrol stations, showrooms & warehouses.
Complies with standard EN60598-1 and any other specific standards.

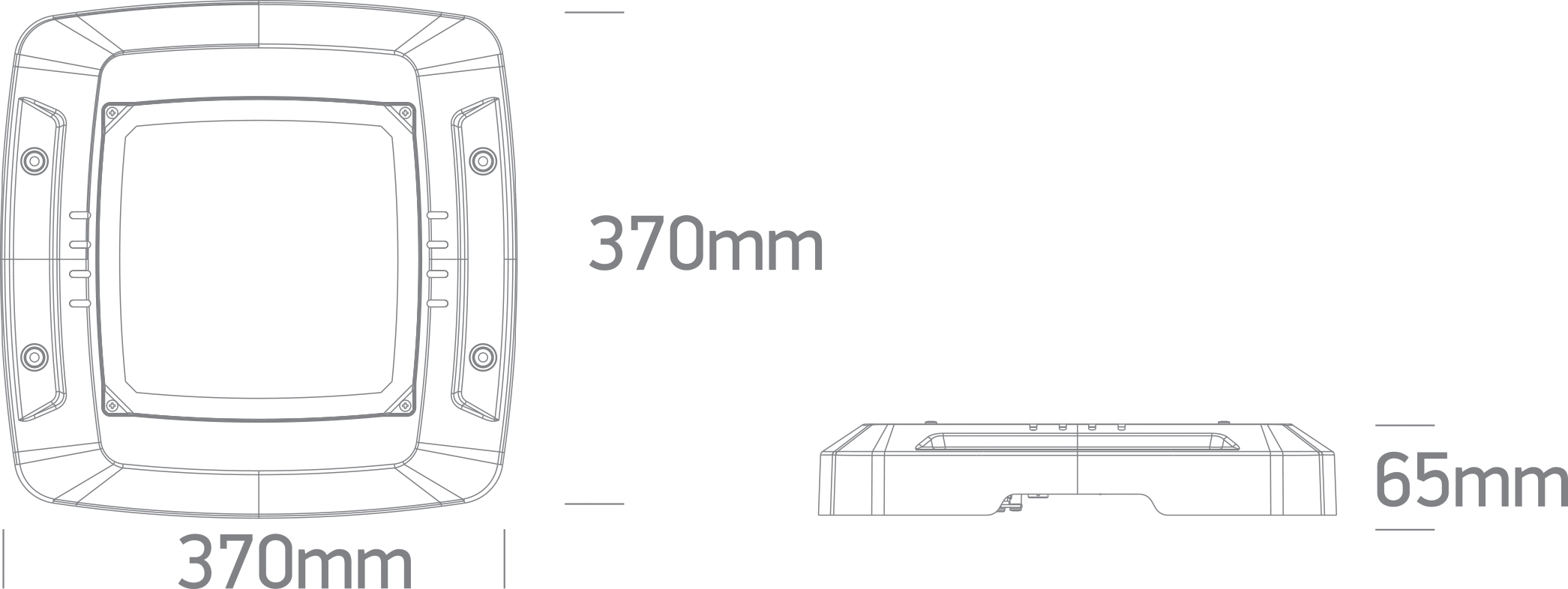

Dimensions
Downloads
Physical Specification
Item Group
21 Industrial & Floodlights
Family
The LED High Power Box Aluminium
Order Code
7058A/W/V
Colour
White
Material
Aluminium
Shape
Rectangular
Length
370mm
Width
370mm
Height
65mm
Surface Ceiling
Yes
Indoor
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
36W / 60W / 90W / 120W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Power (Watts)
36W / 60W / 90W / 120W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
120W
Power Factor
0,9
IP Rating
IP42
Safety Class
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
18000 lm (120w)
Light Efficiency
150lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
4.800kg
Pcs/Carton
1
Barcode
5291889077503
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Year in which the CE mark was affixed
23
