20 Garden & Underwater > LED Garden Spots
7068/B/W

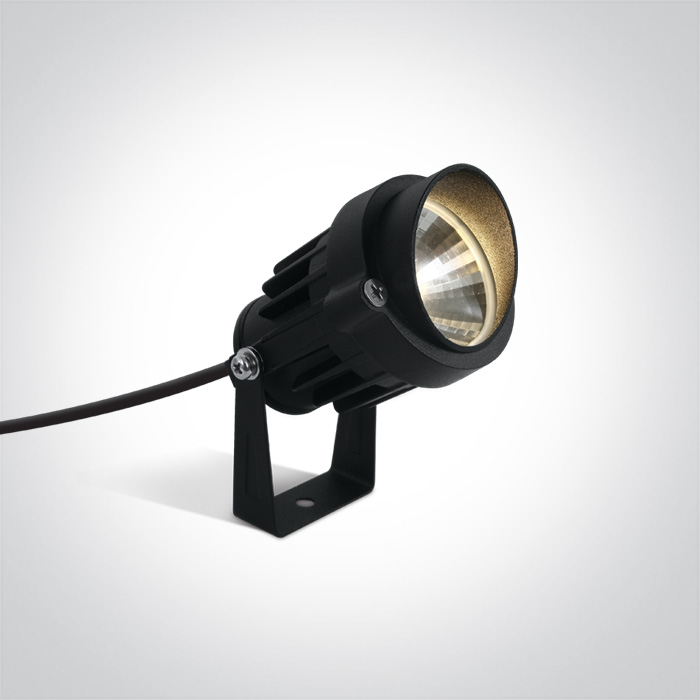

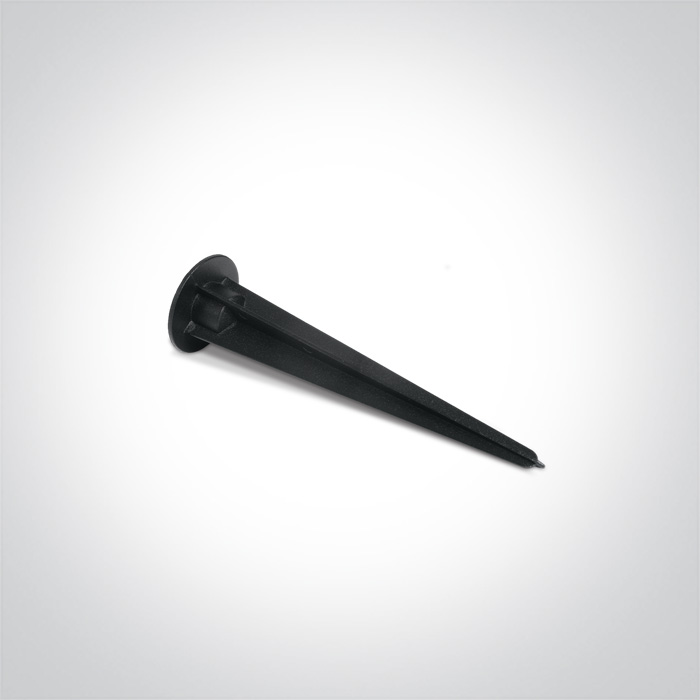

6W garden spot, COB LED, IP65, supplied with spike, for garden illumination.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
20 Garden & Underwater
Family
LED Garden Spots
Order Code
7068/B/W
Colour
Black
Material
Die Cast
Shape
Circular
Height
100mm
Diameter
60mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Outdoor
Yes
Adjustable
1 Direction
IK Rating
7
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
Cable Length
200cm
F Mark
Fitting
Input Type
Constant Current
Power (Watts)
5W
LED Number
0
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6
Power Factor
0,5
Constant Current
Yes
Illumination Data
Colour Temperature
3000K
Lumen Output
380lm
CRI
80
Beam Angle
40º
Illumination Diagram
Packing Info
Box Length
8,5cm
Box Width
7,8cm
Box Height
17,5cm
Box Weight
0.546kg
Pcs/Carton
30
Barcode
5291889056546
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
