08 Strips & Profiles > The Blue LED Strips 24V
.jpg)
.jpg)
7820W/BL
IP68 Waterproof Flexible LED light strip, with SMD3528 LEDs, 60LEDs/meter, 4,8W/meter.Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.

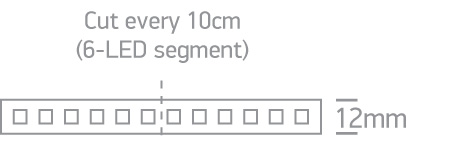

Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The Blue LED Strips 24V
Order Code
7820W/BL
Material
Silicone
Shape
Rectangular
Length
5000mm
Width
12mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
4,8W/m
IP Rating
IP68
Light Source
LED built in
LED Type
SMD 3528
LED Brand
Epistar
LED Number
60LEDs/m
F Mark
Illumination Data
Colour Temperature
Blue
Illumination Diagram
Packing Info
Box Length
26cm
Box Width
25cm
Box Height
2cm
Box Weight
0.440kg
Pcs/Carton
40
Barcode
5291889018285
HS Code
9405423100
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
