7820WL/W

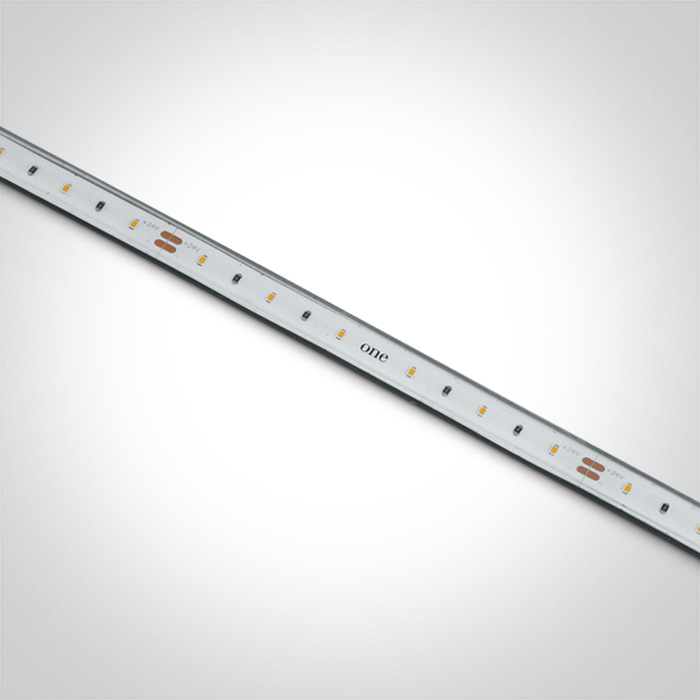

IP68 Waterproof Flexible LED light strip, with SMD2216 LEDs, 60LEDs/meter, 4,8W/meter.Supplied in 15 meters roll with white PCB and double adhesive tape for a better fixing.

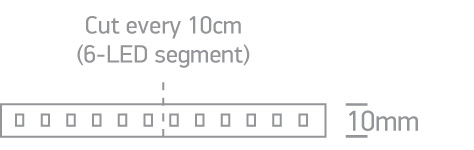

Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 10cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
Connect In One Length Range 24V
Order Code
7820WL/W
Material
Silicone
Shape
Rectangular
Length
15000mm
Width
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
4,8W/m
IP Rating
IP68
Light Source
LED built in
LED Type
SMD 2216
LED Brand
Refond
LED Number
60LEDs/m
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
302lm/m
Light Efficiency
62,91lm/W
CRI
90
Illumination Diagram
Packing Info
Box Length
43cm
Box Width
43cm
Box Height
2cm
Box Weight
1.165kg
Pcs/Carton
20
Barcode
5291889054467
HS Code
9405423100
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
