08 Strips & Profiles > The 9,6W/m 24V
7829A/C

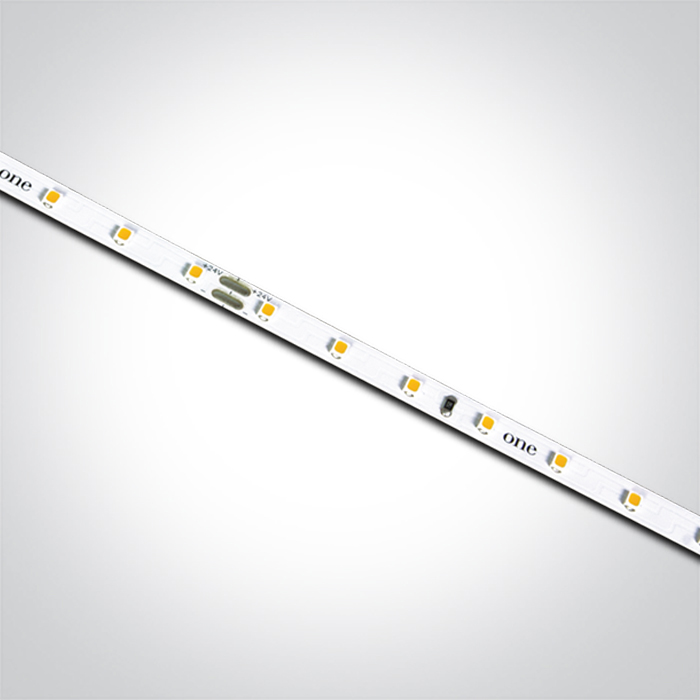

Flexible LED light strip with SMD2835 LEDs, 70LEDs/m, 9,6W/m.
Supplied in 5 meters roll with 3M double face adhesive tape.

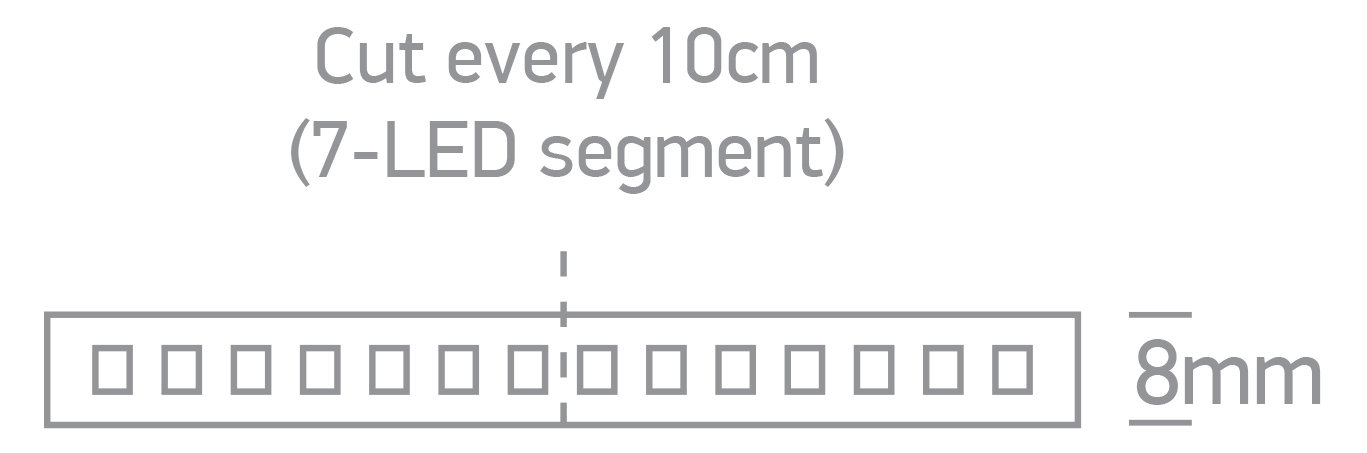

Can be cut every 10cm (7-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 5 meters roll with 3M double face adhesive tape.
Can be cut every 10cm (7-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
08 Strips & Profiles
Family
The 9,6W/m 24V
Order Code
7829A/C
Shape
Rectangular
Length
5000mm
Width
8mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
9,6W/m
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
LED Number
70LEDs/m
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
970lm/m
Light Efficiency
101,04lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.192kg
Pcs/Carton
40
Barcode
5291889078494
HS Code
9405499090
Energy Label
Energy Class
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
23
