08 Strips & Profiles > The Vertical Light Range 24V
7835V/W

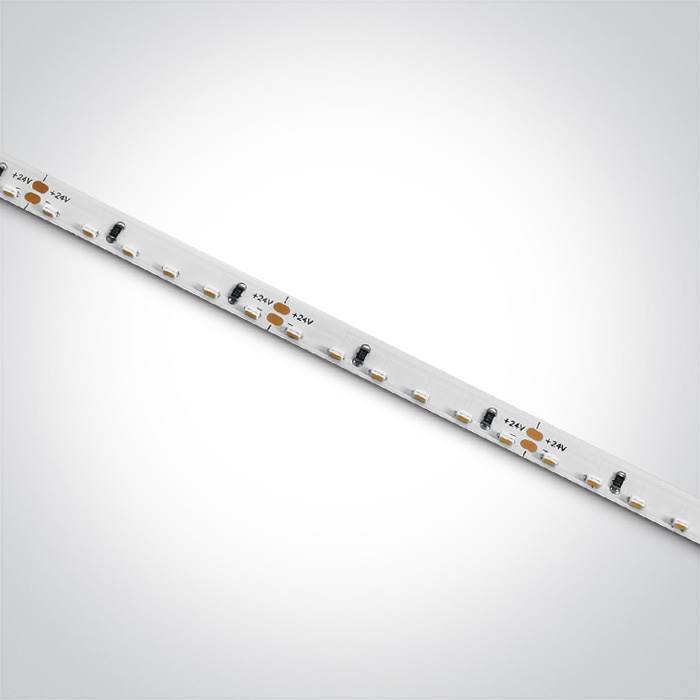

Vertical light Flexible LED light strip, with SMD3014 LEDs, 120LEDs/meter, 14,4W/meter.Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.

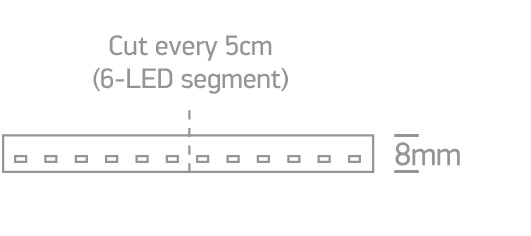

Can be cut every 5cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 5cm (6-LED segment).
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.









Dimensions

Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The Vertical Light Range 24V
Order Code
7835V/W
Shape
Rectangular
Length
5m
Width
8mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class

Power (Watts)
14,4W/m
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3014
LED Brand
Refond
LED Number
120LEDS/m
Illumination Data
Colour Temperature
3000K
Lumen Output
1152lm/m
Light Efficiency
80lm/W
CRI
90
Illumination Diagram

Packing Info
Box Length
24cm
Box Width
21,5cm
Box Height
2cm
Box Weight
0.182kg
Pcs/Carton
40
Barcode
5291889058793
HS Code
9405499090
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
