08 Strips & Profiles > Neon Flex Lightlines
7841A/C

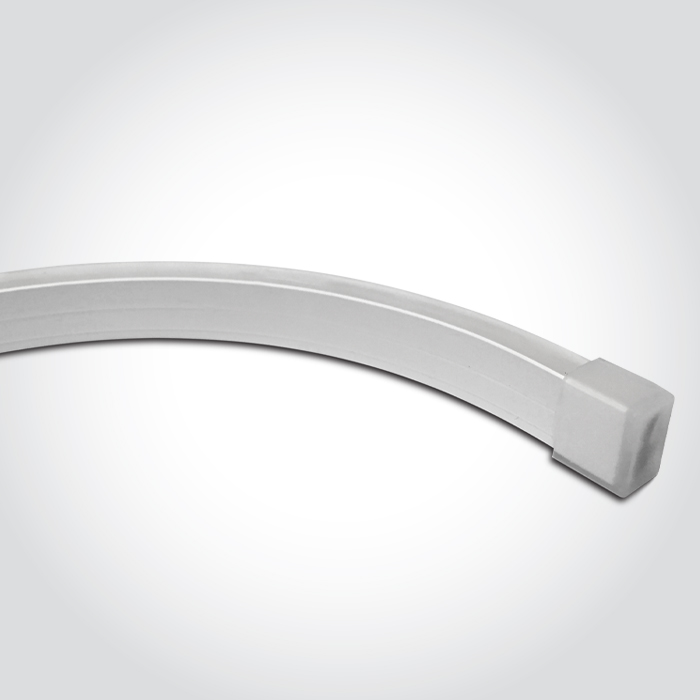

Linear neonflex with SMD2835 LEDs, 180LEDs/m, 10W/m.
Supplied in 5 meters roll.
Can be cut every 3,3cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 5 meters roll.
Can be cut every 3,3cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.

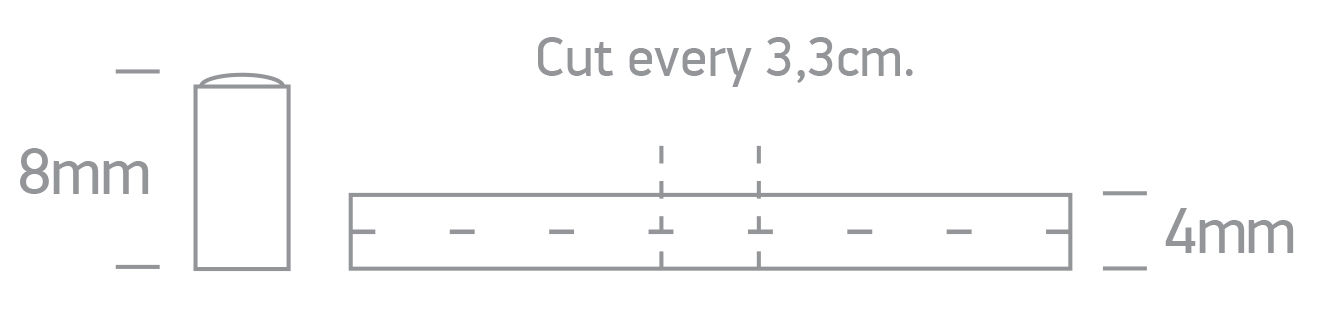

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
Neon Flex Lightlines
Order Code
7841A/C
Material
Silicone
Shape
Rectangular
Length
5000mm
Width
4mm
Height
8mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Light Source
LED built in
LED Type
SMD 2835
LED Number
180LEDs/m
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
280lm/m
Light Efficiency
28lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.385kg
Pcs/Carton
40
Barcode
5291889078548
HS Code
9405423100
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
36000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
23
