08 Strips & Profiles > Neon Flex Lightlines
7841/C

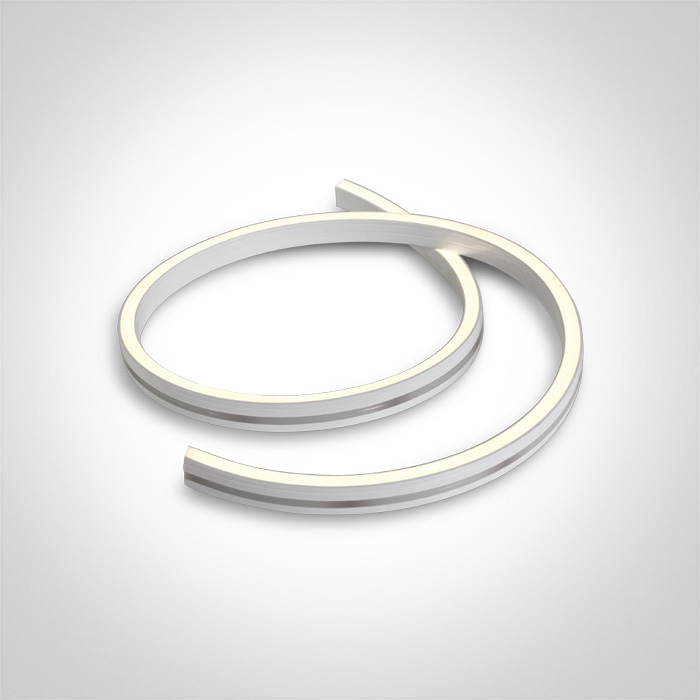

Linear neonflex 24V DC, 140LEDs/meter, 14,4W/meter. Supplied in 5 meters roll.
Can be cut every 5cm.
Complete with 4pcs End Cups
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 5cm.
Complete with 4pcs End Cups
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
Neon Flex Lightlines
Order Code
7841/C
Material
Silicone
Shape
Rectangular
Length
5000mm
Width
6mm
Height
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
14,4W/m
IP Rating
IP66
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Refond
LED Number
140LEDs/m
Cable Length
30cm
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
360lm/m
Light Efficiency
25lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.567kg
Pcs/Carton
40
Barcode
5291889059271
HS Code
9405423100
Energy Label
Certification & Warranty
Warranty
5 years
Average Lifetime
54000Hrs
Wee Directive
Yes
Year in which the CE mark was affixed
19
