New 2025 Edition 2 > Strips & Profiles
7843E/W

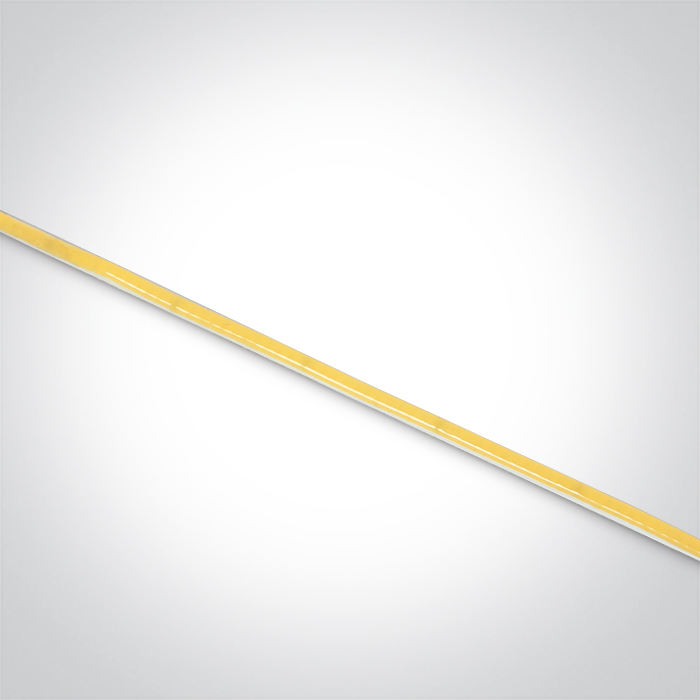

Ultra slim flexible COB LED strip, 400LEDs/meter, 10W/meter.
Supplied in 5 meters roll with 3M double face adhesive tape.

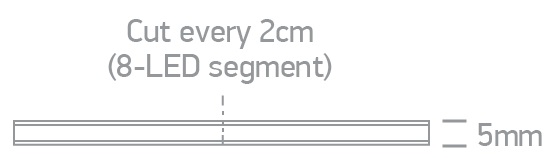

Can be cut every 2cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 5 meters roll with 3M double face adhesive tape.
Can be cut every 2cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.









Dimensions

Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Strips & Profiles
Order Code
7843E/W
Shape
Rectangular
Length
5000mm
Width
5mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class

Power (Watts)
10W/m
IP Rating
IP20
Light Source
LED built in
LED Type
COB
F Mark

Illumination Data
Colour Temperature
3000K
Lumen Output
810lm/m
Light Efficiency
81lm/W
CRI
90
Illumination Diagram

Packing Info
Box Weight
0.130kg
Pcs/Carton
50
Barcode
5291889081234
HS Code
9405499090
Energy Label

Energy Class

Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
