New 2025 Edition 2 > Strips & Profiles
7844E/EW

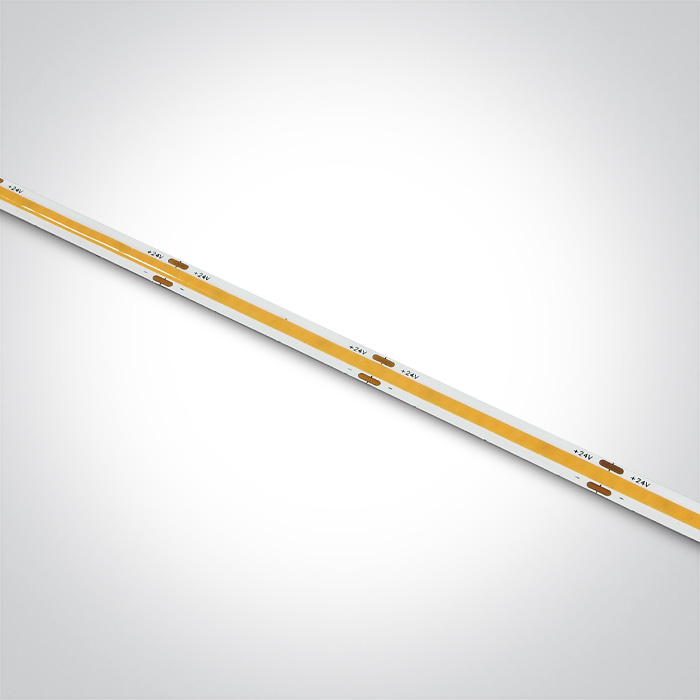

Flexible COB LED strip, 480LEDs/meter, 10,5W/meter.
Supplied in 5 meters roll with 3M double face adhesive tape.
Can be cut every 5cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 5 meters roll with 3M double face adhesive tape.
Can be cut every 5cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.

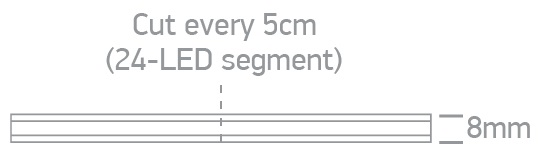

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Strips & Profiles
Order Code
7844E/EW
Shape
Rectangular
Length
5000mm
Width
8mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
10,5W/m
IP Rating
IP20
Light Source
LED built in
LED Type
COB
F Mark
Illumination Data
Colour Temperature
2700K
Lumen Output
820lm/m
Light Efficiency
78lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.140kg
Pcs/Carton
40
Barcode
5291889081210
HS Code
9405499090
Energy Label
Energy Class
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
