08 Strips & Profiles > The COB Strip
7844/W

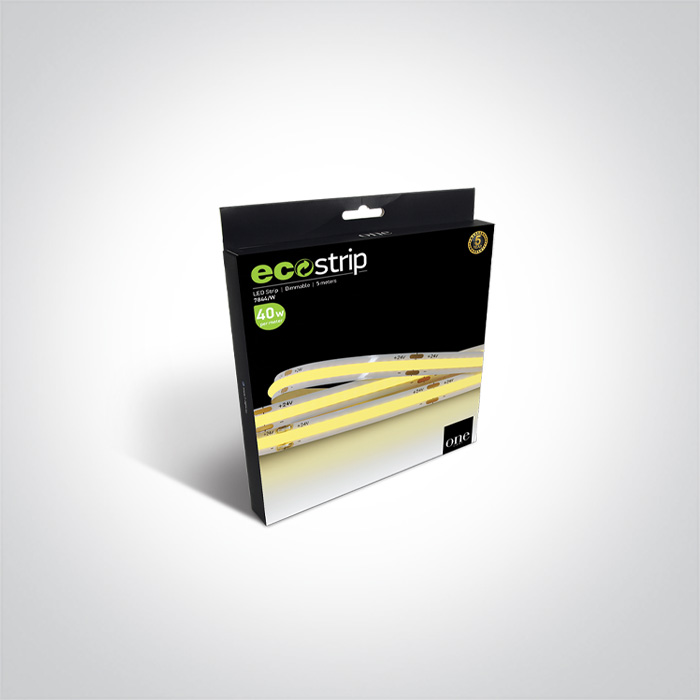

Flexible COB LED light strip, 320LEDs/meter, 8W/meter. Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.
Can be cut every 5cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 5cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The COB Strip
Order Code
7844/W
Shape
Rectangular
Length
5000mm
Width
8mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
8W/m
IP Rating
IP20
Light Source
LED built in
LED Type
COB
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
730lm/m
Light Efficiency
91,25lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.197kg
Pcs/Carton
40
Barcode
5291889063612
HS Code
9405499090
Energy Label
Energy Class
Energy Consumption
8KWh/1000h
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
