08 Strips & Profiles > The IP COB Strip
7846WA/C

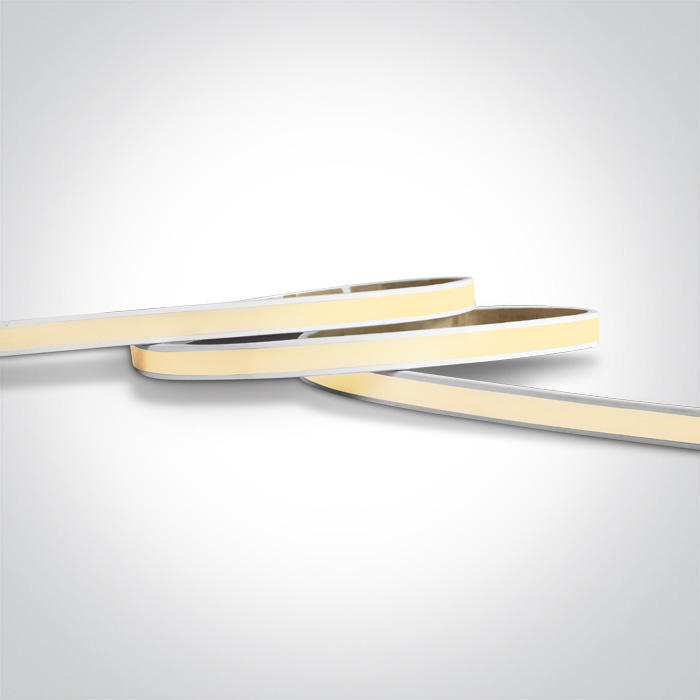

IP68 Flexible COB LED light strip, 512LEDs/m, 10W/meter. Supplied in 5 meters roll with white PCB and double adhesive tape for a better fixing.
Can be cut every 6,25cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Can be cut every 6,25cm.
Requires 24V DC constant voltage LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The IP COB Strip
Order Code
7846WA/C
Material
Silicone
Shape
Rectangular
Length
5000mm
Width
10mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
24V DC
Safety Class
Power (Watts)
10W/m
IP Rating
IP68
Light Source
LED built in
LED Type
COB
LED Number
512LEDs/m
F Mark
Illumination Data
Colour Temperature
4000K
Lumen Output
700lm/m
Light Efficiency
70lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
0.542kg
Pcs/Carton
50
Barcode
5291889071334
HS Code
9405423100
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
21
