08 Strips & Profiles > The 230V IP65 Range
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
7850/W

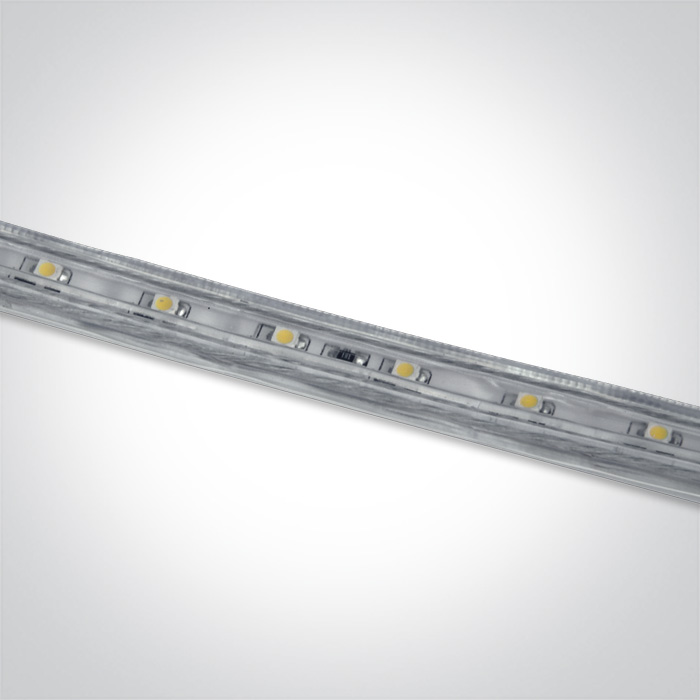

230V Waterproof LED strip 6W/m, IP65 .
Supplied in 100m rolls.
Can be cut every 1m.

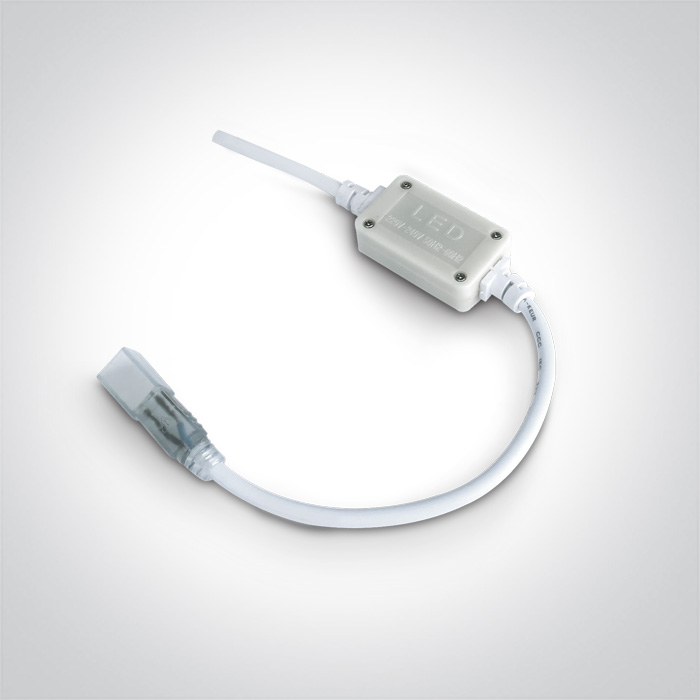

Requires power supply order code 7850P.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 100m rolls.
Can be cut every 1m.
Requires power supply order code 7850P.
Complies with standard EN60598-1 and any other specific standards.

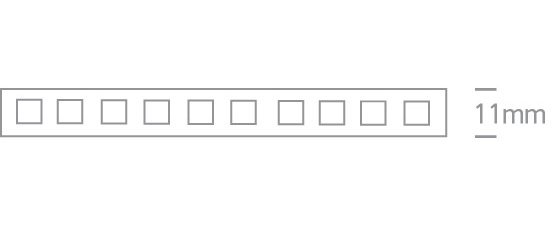

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The 230V IP65 Range
Order Code
7850/W
Shape
Rectangular
Length
100000mm
Width
11mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
6,6W/m
IP Rating
IP65
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Safety Class
Power (Watts)
6W/m
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 3528
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
600W
Power Factor
0,9
IP Rating
IP65
Safety Class
Ambient Temp
0
Operating Temp
0
Illumination Data
Colour Temperature
3000K
Lumen Output
440lm/m
Light Efficiency
73,33lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.106kg
Pcs/Carton
100
Barcode
5291889030904
HS Code
9405423100
Energy Label
Energy Class
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
