7860/C

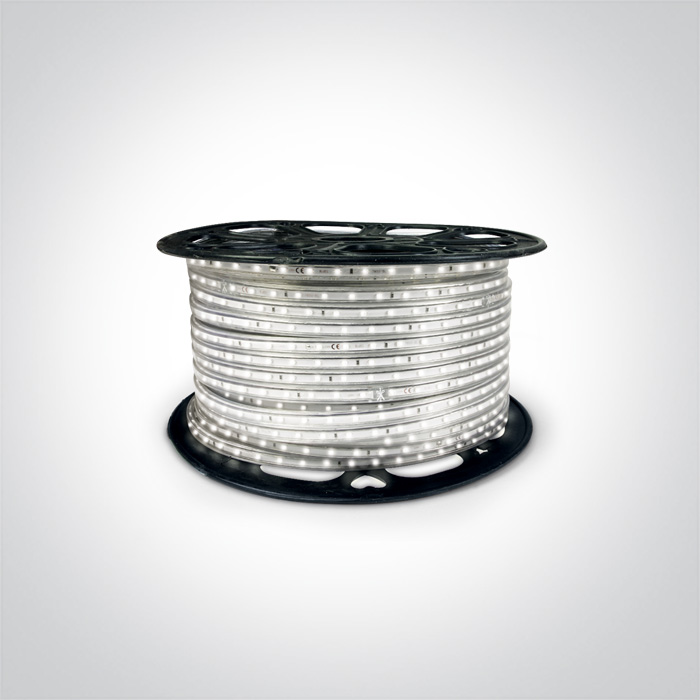

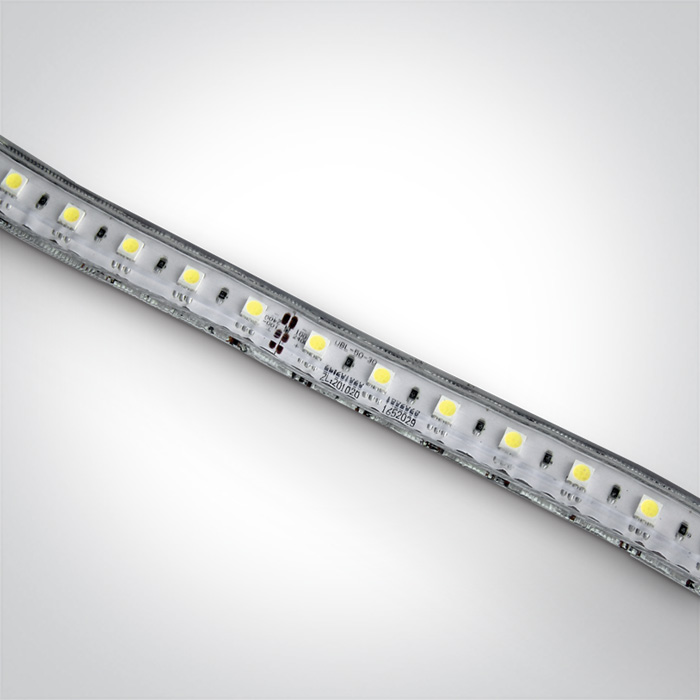

230V Waterproof LED strip 9W/m, IP65 .
Supplied in 50m rolls.
Can be cut every 1m.

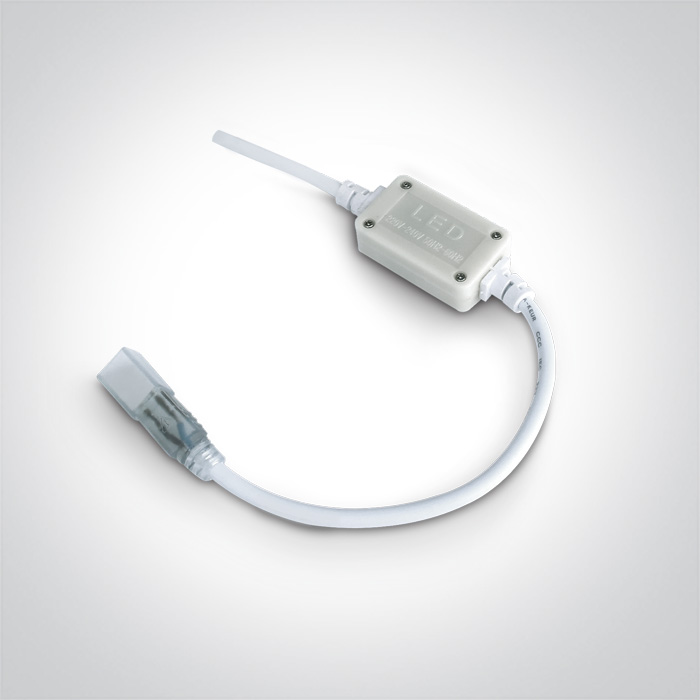

Requires power supply order code 7860P.
Complies with standard EN60598-1 and any other specific standards.
Supplied in 50m rolls.
Can be cut every 1m.
Requires power supply order code 7860P.
Complies with standard EN60598-1 and any other specific standards.

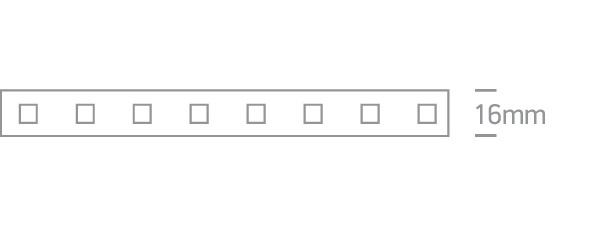

Dimensions
Downloads
Physical Specification
Item Group
08 Strips & Profiles
Family
The 230V IP65 Range
Order Code
7860/C
Shape
Rectangular
Length
50000mm
Width
16mm
Surface Ceiling
Yes
Surface Wall
Yes
Surface Floor/Ground
Yes
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
9W/m
IP Rating
IP65
Light Source
LED built in
Dimmable
Yes
Dimmer type
Triac
F Mark
Fitting
Safety Class
Power (Watts)
9W/m
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 3528
LED Brand
Epistar
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
450W
Power Factor
0,9
IP Rating
IP65
Safety Class
Ambient Temp
0
Operating Temp
0
Illumination Data
Colour Temperature
4000K
Lumen Output
750lm
Light Efficiency
100lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.152kg
Pcs/Carton
50
Barcode
5291889044574
HS Code
9405423100

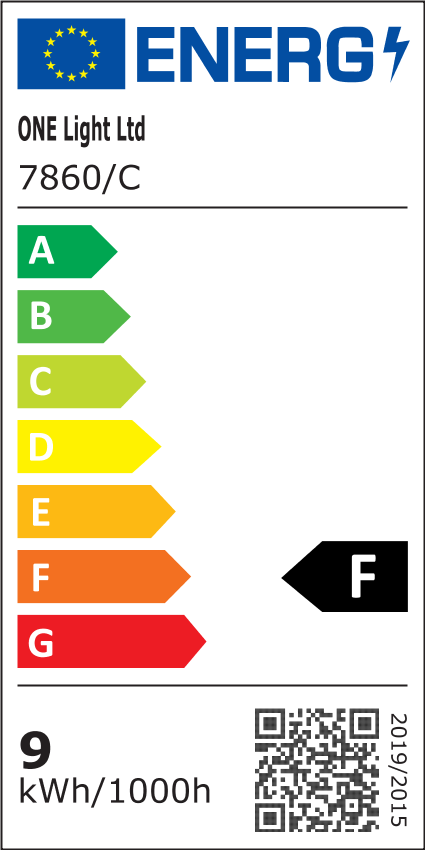

Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
30000hours
Wee Directive
Yes
Year in which the CE mark was affixed
13
