22 Emergency Lights > Emergency LED Recessed Spot
89002

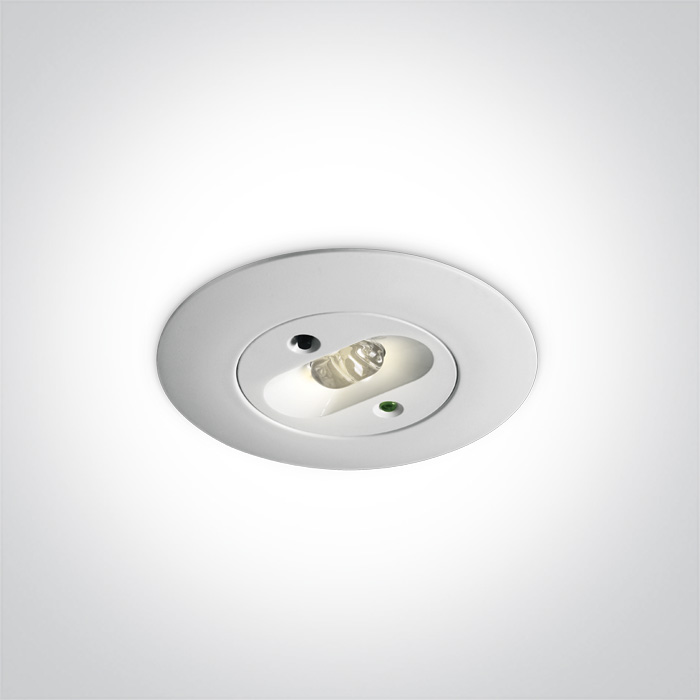

2W Emergency LED recessed , IP20, assymetrical ideal for corridors
installation.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

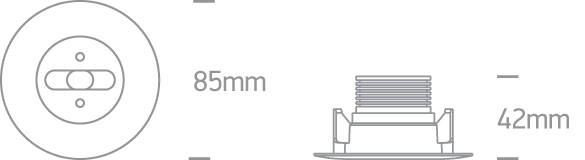

Dimensions
Downloads
Physical Specification
Item Group
22 Emergency Lights
Family
Emergency LED Recessed Spot
Order Code
89002
Colour
White
Material
Aluminium + Plastic
Shape
Circular
Height
42mm
Diameter
85mm
Cutout Hole Diameter
72mm
Recessed Ceiling
Yes
Depth Required
120mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Power (Watts)
2W
IP Rating
IP20
Light Source
LED built in
LED Number
216
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
2W
Power Factor
0,9
Constant Current
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Battery Capacity
3000mAh
Battery Voltage
3,6V
Operation Time
3Hrs
Charging Time
24Hrs
Maintained
Yes
Non Maintained
Yes
Illumination Data
Colour Temperature
6000K
Lumen Output
150lm
Light Efficiency
75lm/W
Illumination Diagram
Packing Info
Box Length
27cm
Box Width
11cm
Box Height
7,5cm
Box Weight
0.766kg
Pcs/Carton
12
Barcode
5291889047025
HS Code
8504408390
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
