23 Drivers > The 350mA Range Constant current
89008
Constant current LED driver, non-dimmable, for 350mA
LED spots / LED fittings, 4-8W.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

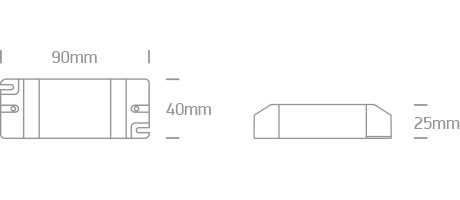

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 350mA Range Constant current
Order Code
89008
Material
Plastic
Shape
Rectangular
Length
90mm
Width
40mm
Height
25mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4-8W
Power Factor
0,8
Constant Current
Yes
350mA
12-24V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
75°C
Housing Material
Plastic
Output Terminal
Cable
Fast Connector
Yes
Fast Connector Type
One Light 350/500
Packing Info
Box Weight
0.063kg
Pcs/Carton
100
Barcode
5291889011149
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
