23 Drivers > The 700mA Range Constant current
89008A
Constant current LED driver, non-dimmable, for 700mA
LED spots / LED fittings, 4-8W.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

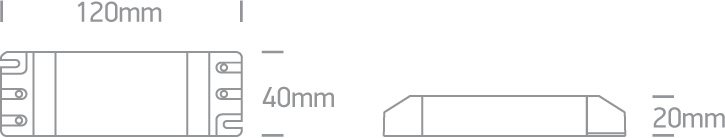

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 700mA Range Constant current
Order Code
89008A
Material
Plastic
Shape
Rectangular
Length
120mm
Width
40mm
Height
20mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4-8W
Power Factor
0,5
Constant Current
Yes
700mA
6-11V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
80°C
Housing Material
Plastic
Output Terminal
Cable
Fast Connector
Yes
Fast Connector Type
One Light 700
Packing Info
Box Weight
0.093kg
Pcs/Carton
100
Barcode
5291889060444
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
