New 2025 Edition 2 > Drivers

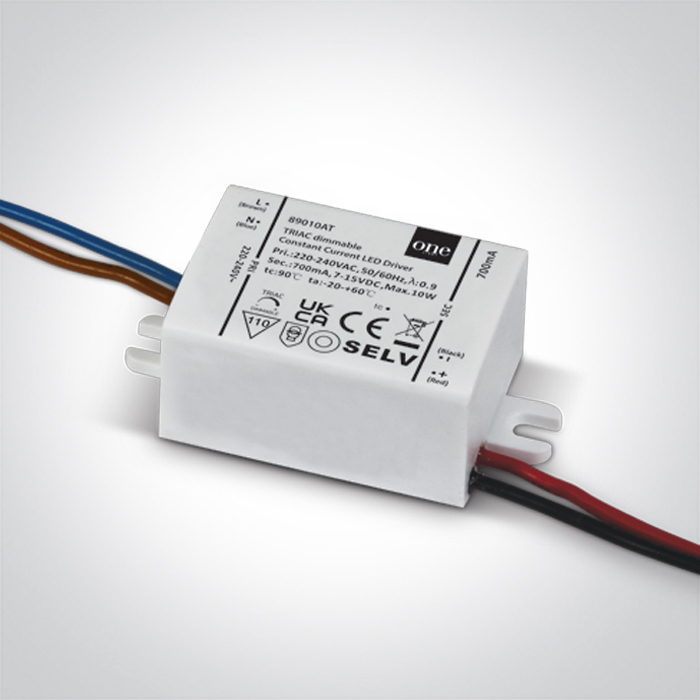

89010AT
IP20 Constant current LED driver, TRIAC dimmable, for 700mA
LED spots / LED fittings 5-10W.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

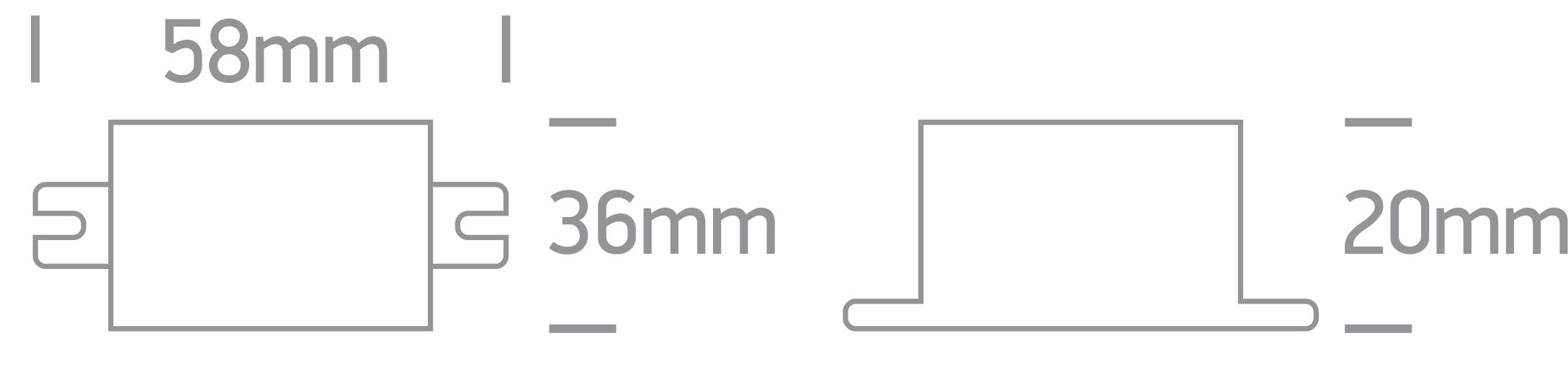

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Drivers
Order Code
89010AT
Material
Plastic
Shape
Rectangular
Length
58mm
Width
36mm
Height
20mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
5-10W
Power Factor
0,9
Constant Current
Yes
700mA
7-15V
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Triac
Ambient Temp
60°C
Operating Temp
90°C
Housing Material
Plastic
Output Terminal
Cable
Fast Connector
Yes
Fast Connector Type
One Light 700
Packing Info
Pcs/Carton
100
Barcode
5291889080817
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
