ONE Light

    • 23 Drivers > The 500mA TRIAC Dimmable Range Constant current

    89015CT
    89015CT
    Dimmable Constant current LED driver for 500mA LED spots / LED fittings, 7,5-15W.

    Complies with standard EN61347-1 and any other specific standards.
    Indoor
    IP
    Dimmable
    Quick Fix
    CE

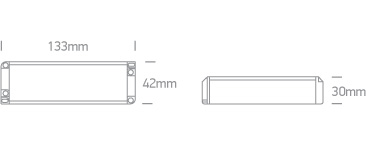

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    23 Drivers
    Family
    The 500mA TRIAC Dimmable Range Constant current
    Order Code
    89015CT
    Material
    Plastic
    Shape
    Rectangular
    Length
    133mm
    Width
    42mm
    Height
    30mm
    Indoor
    Yes

    Electrical Characteristics

    +
    Gear
    Gear Type
    Led Driver
    Input Voltage
    220-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Power (Watts)
    7,5-15W
    Power Factor
    0,9
    Constant Current
    Yes
    500mA
    15-30V
    IP Rating
    IP20
    Safety Class
    Dimmable
    Yes
    Dimmer type
    Triac
    Ambient Temp
    40ºC
    Operating Temp
    85ºC
    Housing Material
    Plastic
    Output Terminal
    Cable
    Cable Length
    15cm
    Fast Connector
    Yes
    Fast Connector Type
    One Light 350/500

    Packing Info

    +
    Box Weight
    0.152kg
    Pcs/Carton
    100
    Barcode
    5291889063582
    HS Code
    8504408390

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    19
