23 Drivers > The 350mA TRIAC Dimmable Range Constant current
89015T
Dimmable Constant current LED driver for 350mA LED spots / LED fittings, 7,5-15W.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

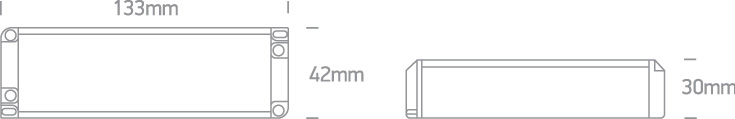

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 350mA TRIAC Dimmable Range Constant current
Order Code
89015T
Material
Plastic
Shape
Rectangular
Length
123mm
Width
45mm
Height
19mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,5-15W
Power Factor
0,9
Constant Current
Yes
350mA
21,5-42,5V
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Triac
Ambient Temp
40ºC
Operating Temp
85ºC
Housing Material
Plastic
Output Terminal
Cable
Cable Length
15cm
Fast Connector
Yes
Fast Connector Type
One Light 350/500
Packing Info
Box Length
12,5cm
Box Width
5cm
Box Height
2,5cm
Box Weight
0.150kg
Pcs/Carton
100
Barcode
5291889041443
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
12
