23 Drivers > The 350mA Range Constant current
89020
Constant current LED driver for 350mA LED spots / LED fittings, 13-20W.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

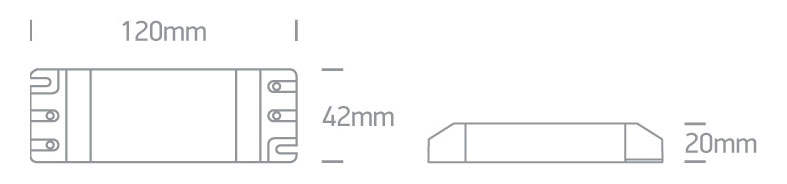

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 350mA Range Constant current
Order Code
89020
Material
Plastic
Shape
Rectangular
Length
154mm
Width
50mm
Height
14mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13-20W
Power Factor
0,9
Constant Current
Yes
350mA
37-57V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45ºC
Operating Temp
80ºC
Housing Material
Plastic
Output Terminal
Cable
Cable Length
15cm
Fast Connector
Yes
Fast Connector Type
One Light 350/500
Packing Info
Box Length
12,5cm
Box Width
5cm
Box Height
2,5cm
Box Weight
0.097kg
Pcs/Carton
100
Barcode
5291889035114
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
12
