23 Drivers > The 500mA Range Constant current
89030C

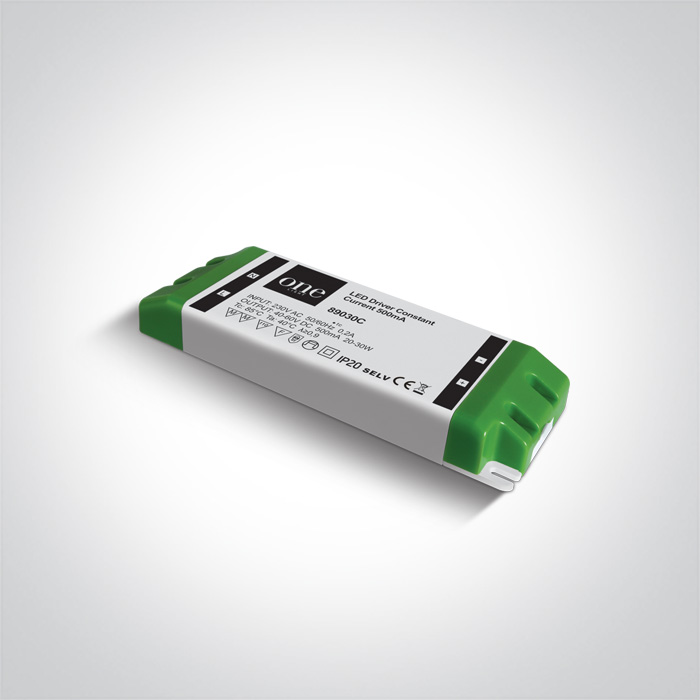

IP20 Constant current LED driver, non-dimmable, for 500mA
LED spots / LED fittings, 20-30W.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

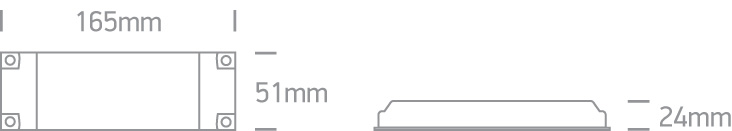

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 500mA Range Constant current
Order Code
89030C
Material
Plastic
Shape
Rectangular
Length
160mm
Width
58mm
Height
20mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
14-28W
Power Factor
0,5
Constant Current
Yes
500mA
28-56V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20~50°C
Operating Temp
80°C
Housing Material
Plastic
Output Terminal
Cable
Fast Connector
Yes
Fast Connector Type
One Light 350/500
Packing Info
Box Weight
0.172kg
Pcs/Carton
100
Barcode
5291889029250
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
