23 Drivers > Adjustable Constant Current DALI Dimmable Range
89040L
DALI & Push to DIM LED driver.
Adjustable output using DIP switches.
Complies with standard EN61347-1 and any other specific standards.
Adjustable output using DIP switches.
Complies with standard EN61347-1 and any other specific standards.

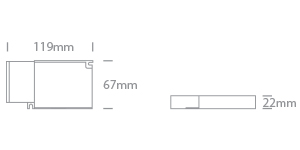

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
Adjustable Constant Current DALI Dimmable Range
Order Code
89040L
Material
Plastic
Shape
Rectangular
Length
119mm
Width
67mm
Height
22mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
Refer to table
Power Factor
0.95
Constant Current
Yes
300mA
10-42V
350mA
10-42V
400mA
10-42V
450mA
10-42V
500mA
10-42V
550mA
10-42V
600mA
10-42V
650mA
10-42V
700mA
10-42V
750mA
10-42V
800mA
10-42V
850mA
10-40V
900mA
10-40V
950mA
10-40V
1000mA
10-40V
1050mA
10-40V
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Housing Material
Plastic
Output Terminal
Cable
Packing Info
Box Weight
0.167kg
Pcs/Carton
20
Barcode
5291889075738
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
