99 Spare Parts > Drivers
89048

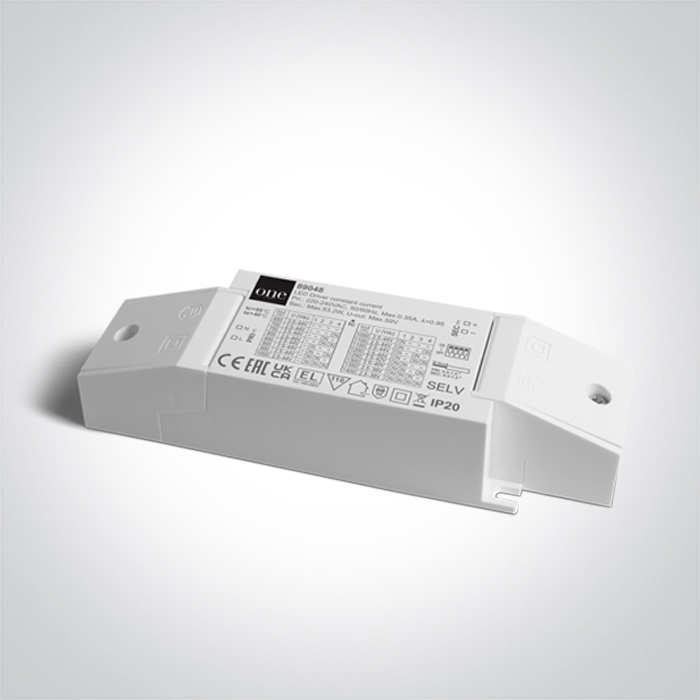

48W 1200mA constant current LED driver for LED panels
50148E, 50148AE, 50148PE, 50148RE.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

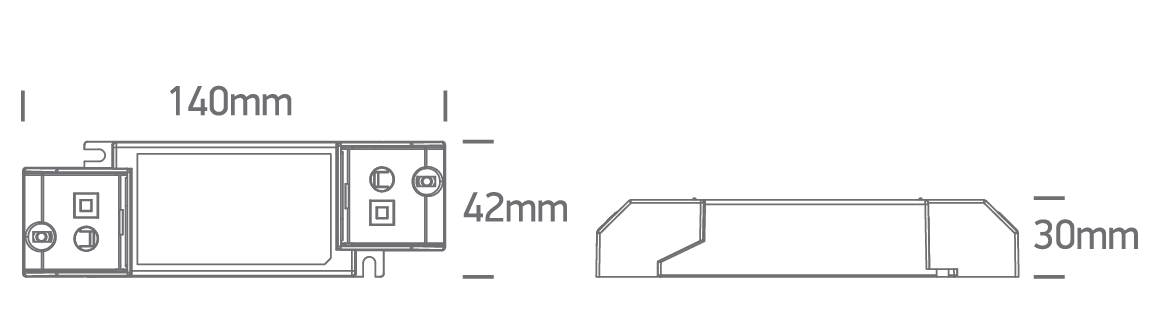

Dimensions
Downloads
Physical Specification
Item Group
99 Spare Parts
Family
Drivers
Order Code
89048
Material
Plastic
Shape
Rectangular
Length
140mm
Width
43mm
Height
30mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
32,4-50,4W
Power Factor
0,9
Constant Current
Yes
1200mA
26-40V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-30~50ºC
Operating Temp
80ºC
Housing Material
Plastic
Output Terminal
Cable
Cable Length
15cm
Fast Connector
Yes
Fast Connector Type
Other
Packing Info
Box Length
19cm
Box Width
3,5cm
Box Height
6cm
Box Weight
0.155kg
Pcs/Carton
80
Barcode
5291889037507
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
14
