23 Drivers > High Power Constant current

89060

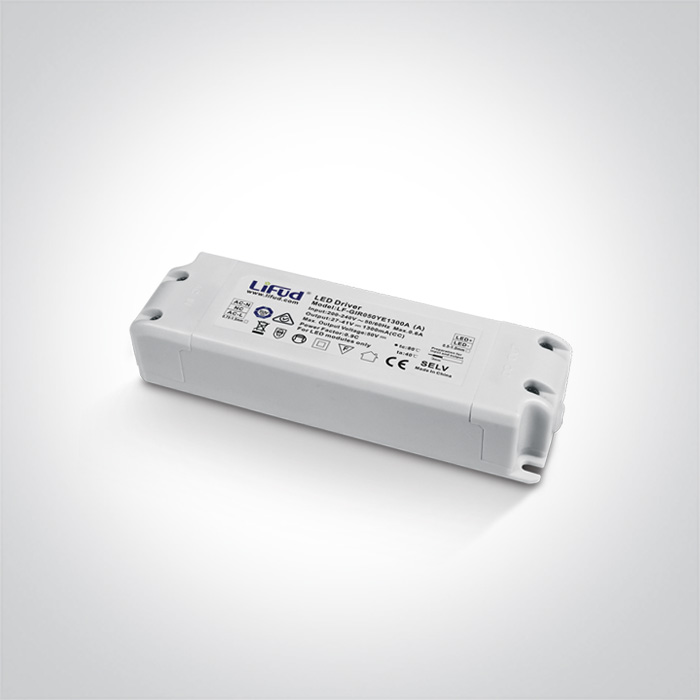

55W 1300mA constant current LED driver for LED panels.

Complies with standard EN61347-1 and any other specific standards.
Indoor
IP
Quick Fix
CE

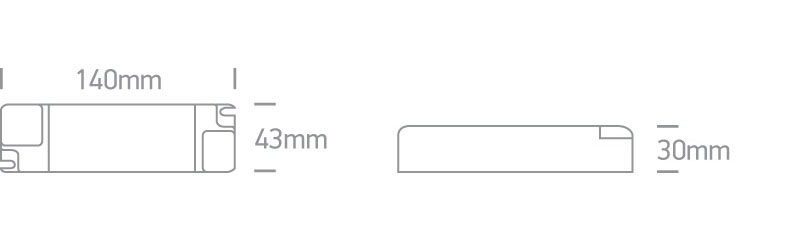

Dimensions
Downloads

Physical Specification

+
Item Group
23 Drivers
Family
High Power Constant current
Order Code
89060
Material
Plastic
Shape
Rectangular
Length
140mm
Width
43mm
Height
30mm
Indoor
Yes

Electrical Characteristics

+
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
33-55W
Power Factor
0,95
Constant Current
Yes
1300mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20~40ºC
Operating Temp
80ºC
Housing Material
Plastic
Output Terminal
Cable
Cable Length
15cm
Fast Connector
Yes
Fast Connector Type
Other

Packing Info

+
Box Weight
0.166kg
Pcs/Carton
80
Barcode
5291889042013
HS Code
8504408390

Certification & Warranty

+
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
15
