24 Control & Dimming > 12-36V DALI & Push to DIM Dimmer
89100LP
4 channel 12-36V constant voltage Dali/Push to Dim dimmer, IP67.
Requires 12-36V constant voltage driver.
Complies with standard EN61347-1 and any other specific standards.
Requires 12-36V constant voltage driver.
Complies with standard EN61347-1 and any other specific standards.

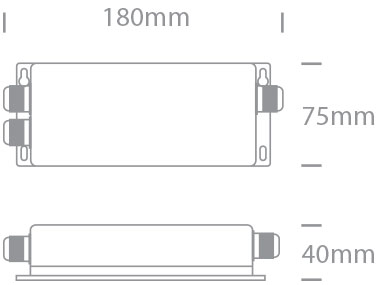

Dimensions
Downloads
Physical Specification
Item Group
24 Control & Dimming
Family
12-36V DALI & Push to DIM Dimmer
Order Code
89100LP
Material
Plastic
Shape
Rectangular
Length
180mm
Width
75mm
Height
40mm
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Controller
Input Voltage
12-36V DC
Power (Watts)
60W@12V/120W@24V/180W@36V
Constant Voltage
Yes
12 V
Yes
24 V
Yes
IP Rating
IP67
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Length
25cm
Box Width
12cm
Box Height
4,5cm
Box Weight
0.483kg
Pcs/Carton
18
Barcode
5291889070207
HS Code
8504408390
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
