23 Drivers > The 24V DC Slim DALI Dimmable Constant voltage

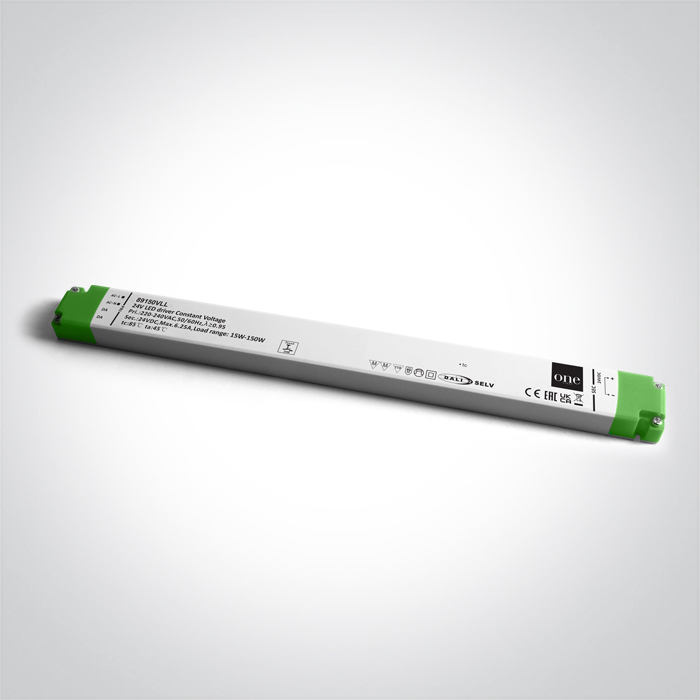

89150VLL
15-150W 24V DC DALI and Push to dim dimmable constant voltage driver, suitable to install inside profile, IP20.
Complies with standard EN61347-1 and any other specific standards.
Complies with standard EN61347-1 and any other specific standards.

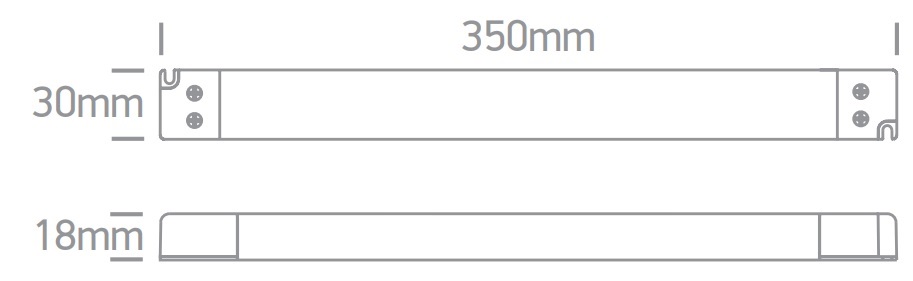

Dimensions
Downloads
Physical Specification
Item Group
23 Drivers
Family
The 24V DC Slim DALI Dimmable Constant voltage
Order Code
89150VLL
Material
Plastic
Shape
Rectangular
Length
350mm
Width
30mm
Height
18mm
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
15-150W
Power Factor
0,95
Constant Voltage
Yes
24 V
Yes
IP Rating
IP20
Safety Class
Dimmable
Yes
Dimmer type
Dali, Push to Dim
Ambient Temp
45ºC
Operating Temp
85ºC
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Weight
0.310kg
Pcs/Carton
20
Barcode
5291889069713
HS Code
8504408390
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
