21 Emergency Lights > Ceiling Emergency Point
89412/W

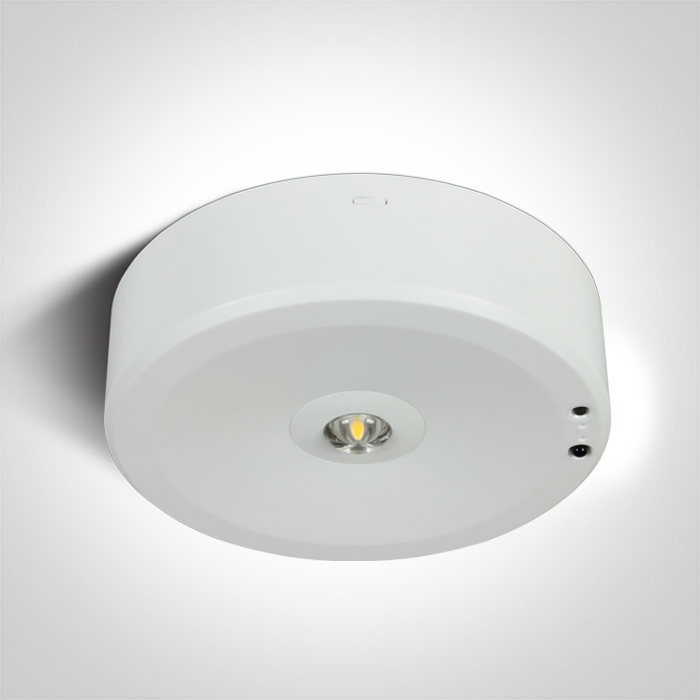

3W LED Ceiling mounted emergency light, IP20. Non-maintained with self-test.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
21 Emergency Lights
Family
Ceiling Emergency Point
Order Code
89412/W
Colour
White
Material
Plastic
Shape
Circular
Height
40mm
Diameter
150mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3W
Power Factor
0,9
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Battery Capacity
5000mAh
Battery Voltage
3,6V
Operation Time
3Hrs
Charging Time
8Hrs
Non Maintained
Yes
Illumination Data
Colour Temperature
4000K
Lumen Output
300lm
Light Efficiency
100lm/W
Beam Angle
155°
Illumination Diagram
Packing Info
Box Weight
0.380kg
Pcs/Carton
20
Barcode
5291889078067
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
23
