02 Recessed Spots Fixed LED > The Super Mini Series
10101L/W/BL

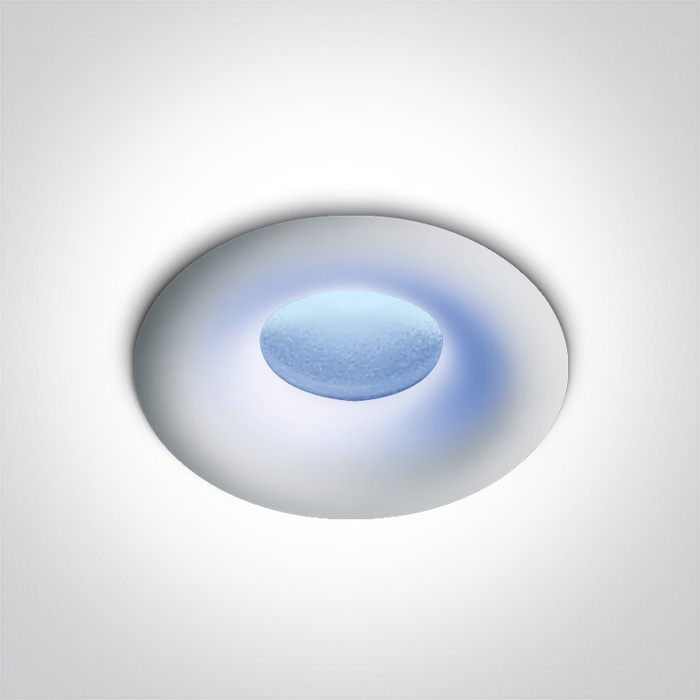

1W Recessed Star Light LED spot, IP44.
Requires 350mA driver. Driver cannot pass through the cut-out hole.
Complies with standard EN60598-1 and any other specific standards.
Requires 350mA driver. Driver cannot pass through the cut-out hole.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Super Mini Series
Order Code
10101L/W/BL
Colour
White
Material
Aluminium
Shape
Circular
Height
21mm
Diameter
16mm
Cutout Hole Diameter
12mm
Recessed Ceiling
Yes
Recessed wall
Yes
Depth Required
30mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
350mA
Safety Class
Power (Watts)
1W
IP Rating
IP44
Light Source
LED built in
LED Type
COB
LED Brand
Lumileds
Cable Length
100cm
Fast Connector
One Light 350/500
F Mark
Illumination Data
Colour Temperature
Blue
Illumination Diagram
Packing Info
Box Length
6,5cm
Box Width
6,5cm
Box Height
4,5cm
Box Weight
0.051kg
Pcs/Carton
100
Barcode
5291889053286
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
