    • 01 Recessed Spots Fixed > The Trimless Chill Out Range Round

    10105RM
    Gallery
    10105RM
    10105RM
    10105RM
    Must be ordered separately

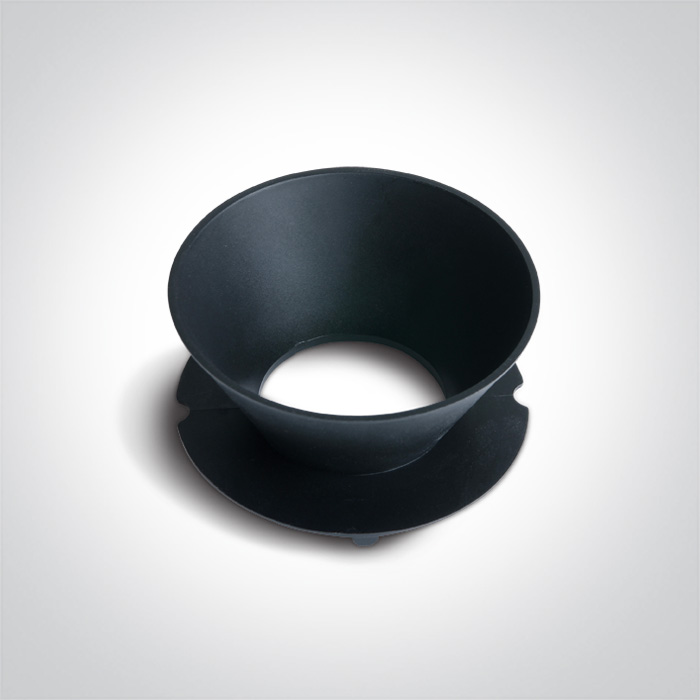

    050099/B
    050099/B

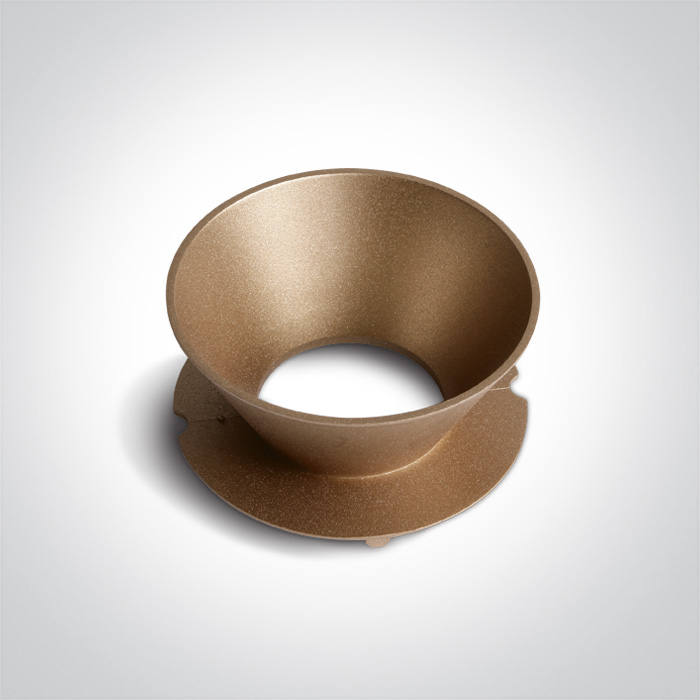

    050099/BS
    050099/BS

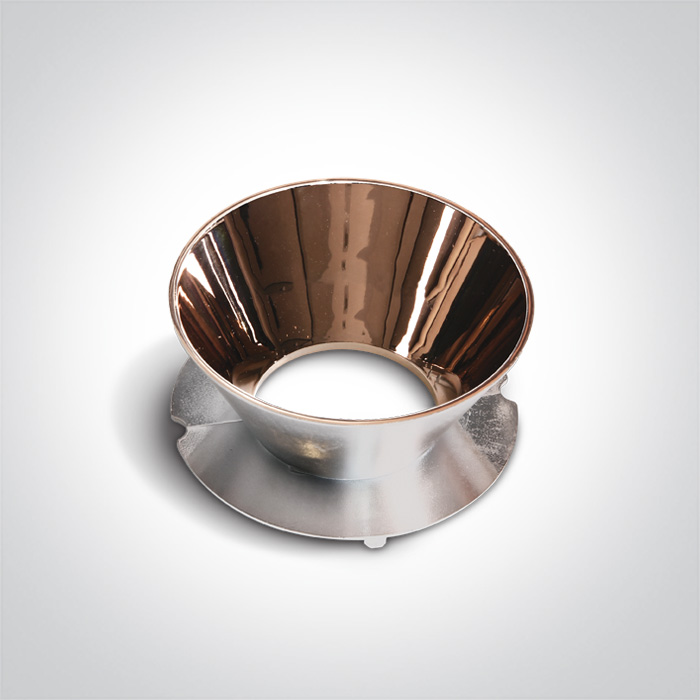

    050099/CU
    050099/CU

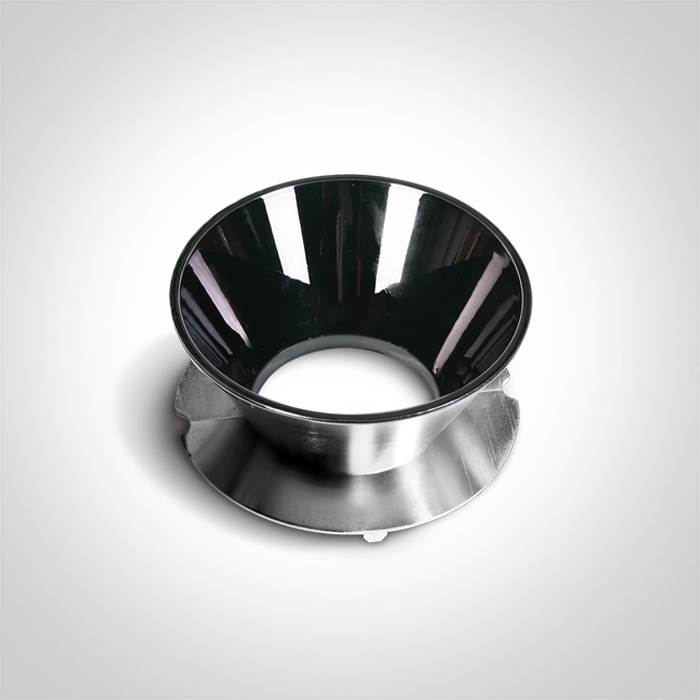

    050099/DC
    050099/DC

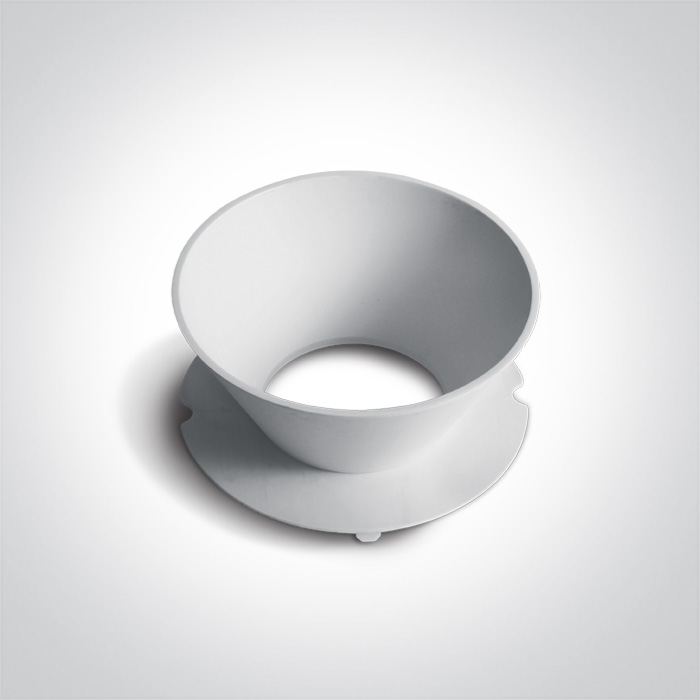

    050099/W
    050099/W
    10105RM

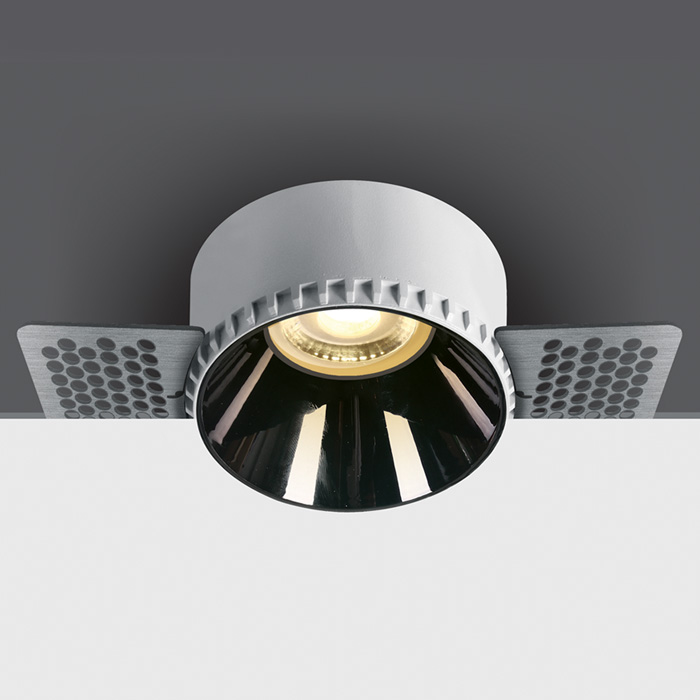

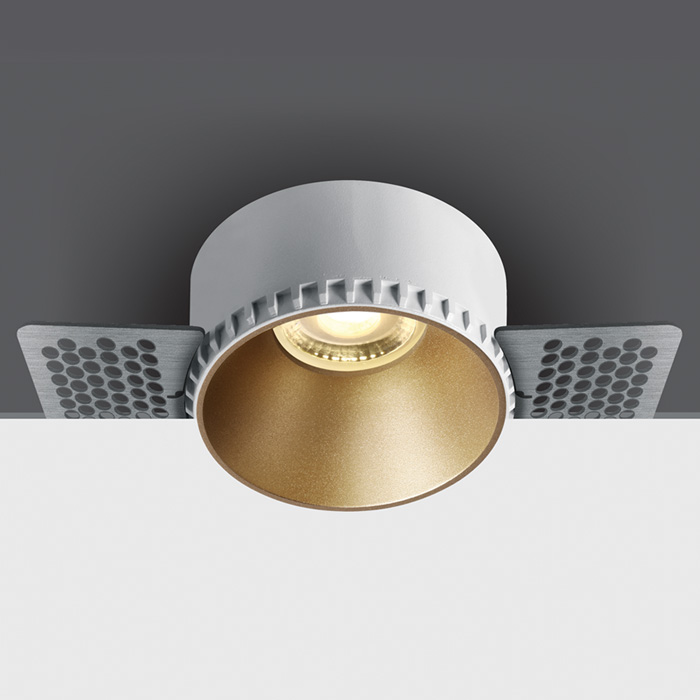

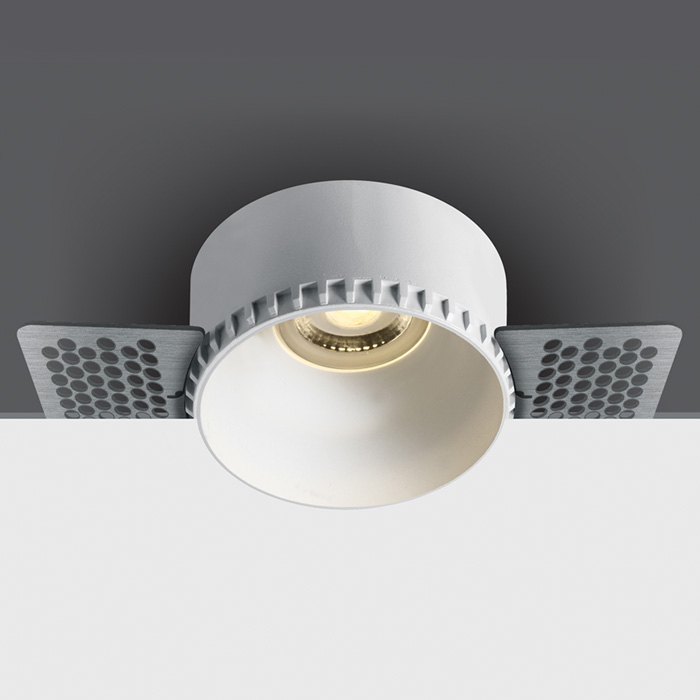

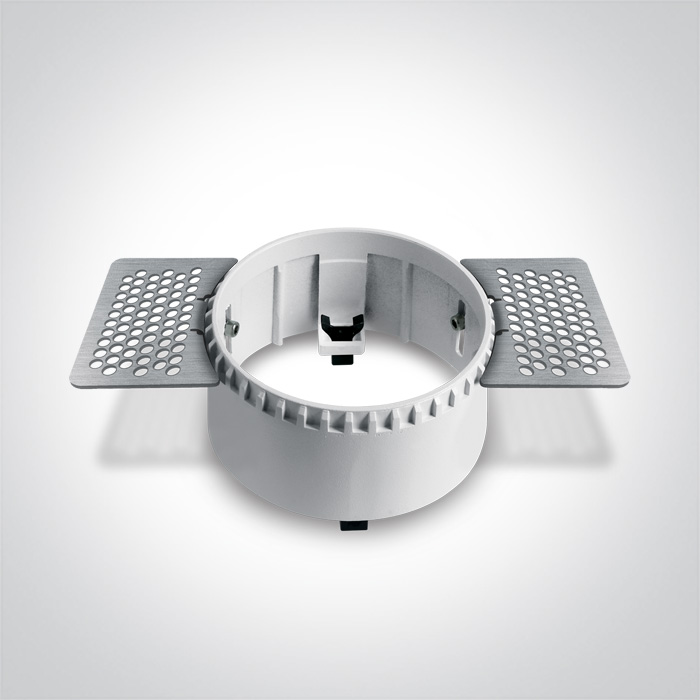

    Trimless Recessed dark light MR16 spot with interchangeable reflector and GU10 lampholder.

    Reflector must be order seperately.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor
    Ceiling
    IP
    Dark Light
    Beam Angle
    CE

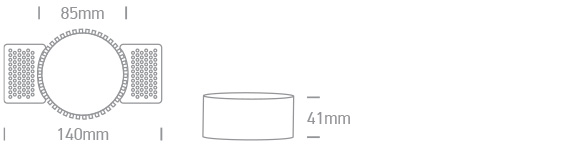

    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    01 Recessed Spots Fixed
    Family
    The Trimless Chill Out Range Round
    Order Code
    10105RM
    Colour
    White
    Material
    Die Cast
    Shape
    Circular
    Height
    40mm
    Diameter
    60mm
    Cutout Hole Diameter
    90mm
    Recessed trimmless ceiling
    Yes
    Depth Required
    130mm
    Indoor
    Yes
    Adjustable
    No

    Electrical Characteristics

    +
    Gear
    No
    Fitting + Driver
    Input Voltage
    100-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Safety Class
    Power (Watts)
    10W
    IP Rating
    IP20
    Light Source
    Replaceable lamp
    Lamp Holder
    GU10
    Number of Lamps
    1
    Dimmable
    N/A
    Cable Length
    15cm
    F Mark

    Illumination Data

    +
    Illumination Diagram
    Dark Light
    Yes

    Packing Info

    +
    Box Length
    10cm
    Box Width
    7cm
    Box Height
    15cm
    Box Weight
    0.242kg
    Pcs/Carton
    50
    Barcode
    5291889053231
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    18
