ONE Light

    • 01 Recessed Spots Fixed > The Fire Rated Dark Light

    10109F/W
    Gallery
    10109F/W
    10109F/W

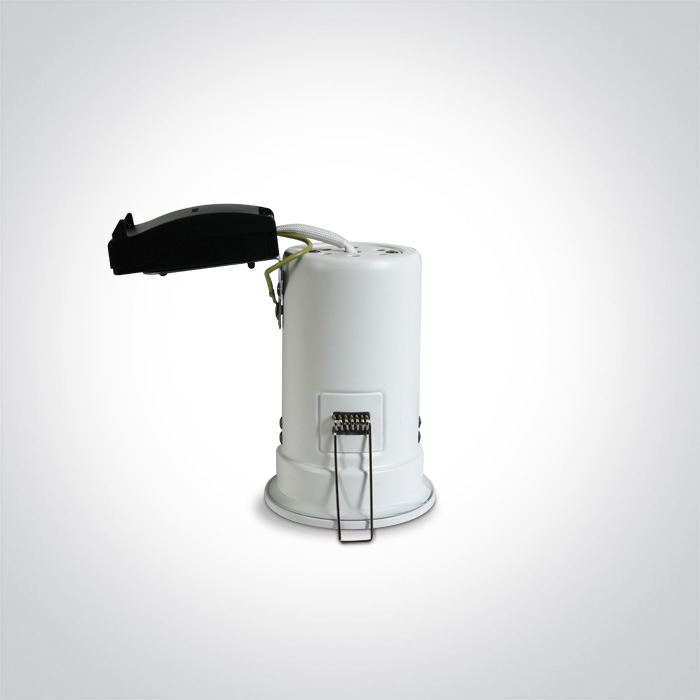

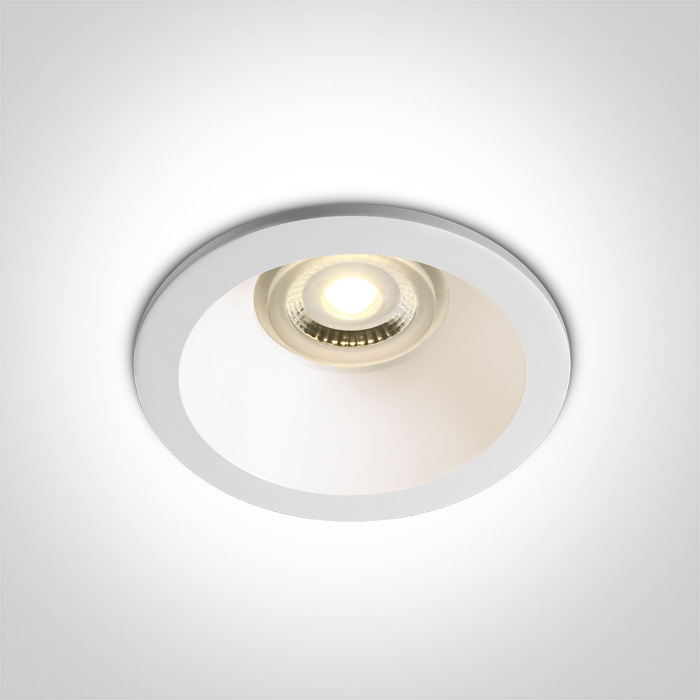

    Recessed Dark Light Fire Rated MR16 spot with GU10 lampholder.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor-Outdoor
    Ceiling
    IP
    Dark Light
    Beam Angle
    CE

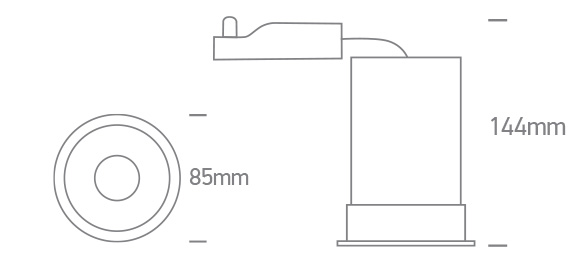

    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    01 Recessed Spots Fixed
    Family
    The Fire Rated Dark Light
    Order Code
    10109F/W
    Colour
    White
    Material
    Die Cast
    Shape
    Circular
    Height
    124mm
    Diameter
    85mm
    Cutout Hole Diameter
    73mm
    Recessed Ceiling
    Yes
    Depth Required
    160mm
    Indoor
    Yes
    Outdoor
    Yes
    Adjustable
    No

    Electrical Characteristics

    +
    Gear
    No
    Fitting + Driver
    Input Voltage
    100-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Safety Class
    Power (Watts)
    10W
    IP Rating
    IP65
    Light Source
    Replaceable lamp
    Lamp Holder
    GU10
    Number of Lamps
    1
    Dimmable
    N/A
    F Mark

    Illumination Data

    +
    Illumination Diagram
    Dark Light
    Yes

    Packing Info

    +
    Box Length
    12cm
    Box Width
    9,5cm
    Box Height
    14cm
    Box Weight
    0.410kg
    Pcs/Carton
    30
    Barcode
    5291889069928
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    20
