02 Recessed Spots Fixed LED > The Mix & Match Range
10112HA/W/W
12W COB LED recessed spot, IP20, for general application.
Suitable with Mix & Match range.
Requires 700mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.
Suitable with Mix & Match range.
Requires 700mA constant current driver.
Complies with standard EN60598-1 and any other specific standards.

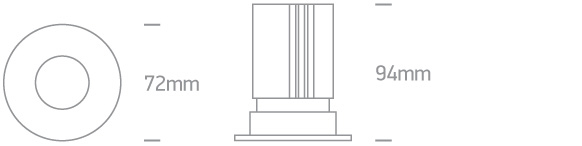

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Mix & Match Range
Order Code
10112HA/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
94mm
Diameter
72mm
Cutout Hole Diameter
66mm
Recessed Ceiling
Yes
Depth Required
135mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Current
Input Current
700mA
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Cable Length
40cm
Fast Connector
One Light 700
F Mark
Illumination Data
Colour Temperature
3000K
Lumen Output
1100lm
Light Efficiency
91,67lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.292kg
Pcs/Carton
50
Barcode
5291889071617
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
21
