02 Recessed Spots Fixed LED > The Dark Light Pro Range Aluminium
10115FD/B/W

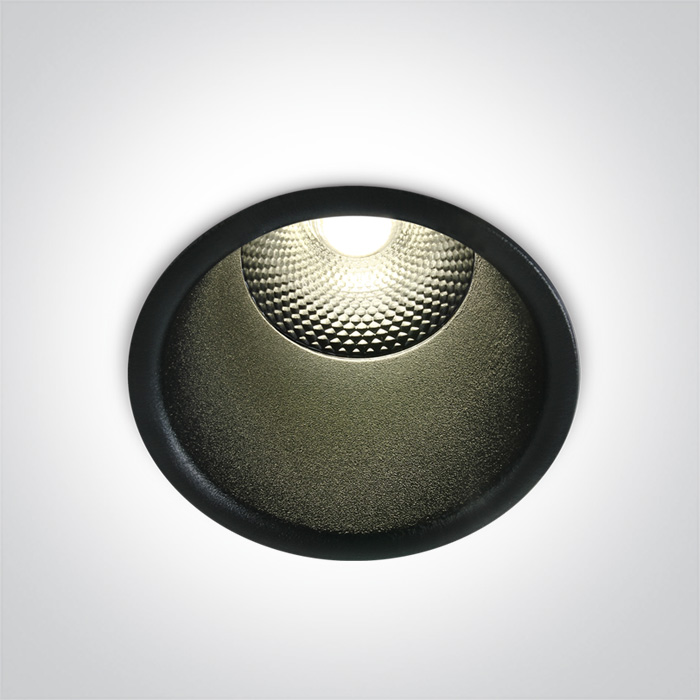

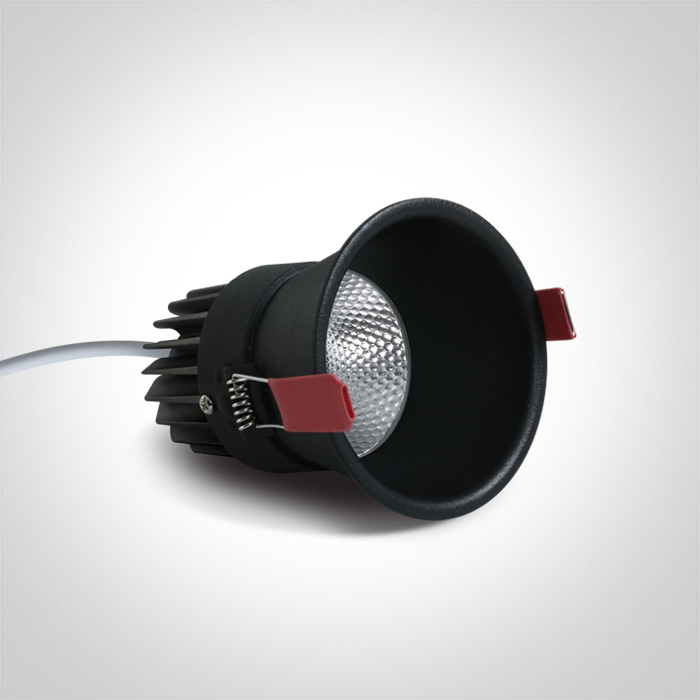

15W COB LED recessed spot, IP20, for general lighting applications.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

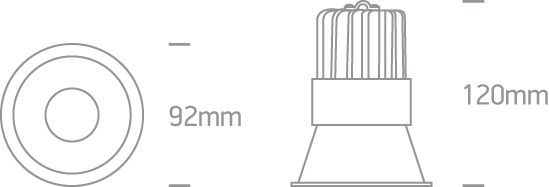

Dimensions
Downloads
Physical Specification
Item Group
02 Recessed Spots Fixed LED
Family
The Dark Light Pro Range Aluminium
Order Code
10115FD/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
120mm
Diameter
92mm
Cutout Hole Diameter
82mm
Recessed Ceiling
Yes
Depth Required
150mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
39,5V
Safety Class
Power (Watts)
13,82W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Epistar
LED Number
1
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
8,75-14W
Power Factor
0,9
Constant Current
Yes
350mA
25-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1275lm
Light Efficiency
85lm/W
CRI
90
Beam Angle
24°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
12,5cm
Box Width
10cm
Box Height
14cm
Box Weight
0.380kg
Pcs/Carton
20
Barcode
5291889057390
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
