03 Recessed Spots Adjustable > The Dual Ring Range Round
11105AC/AL
Recessed adjustable MR16 spot with GU5.3 lampholder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.

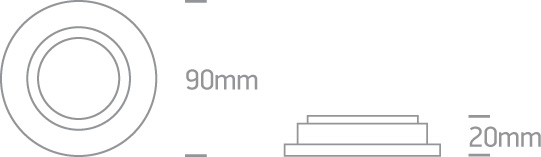

Dimensions
Downloads
Physical Specification
Item Group
03 Recessed Spots Adjustable
Family
The Dual Ring Range Round
Order Code
11105AC/AL
Colour
Aluminium
Material
Natural Aluminium
Shape
Circular
Height
20mm
Diameter
90mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Depth Required
60mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
12V AC/DC
Safety Class
Power (Watts)
50W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU5.3
Number of Lamps
1
LED Number
0
Cable Length
40cm
Illumination Data
Illumination Diagram
Packing Info
Box Length
10cm
Box Width
9,5cm
Box Height
5cm
Box Weight
0.168kg
Pcs/Carton
50
Barcode
5291889016106
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
13
