03 Recessed Spots Adjustable > The Classic Adjustable GU10

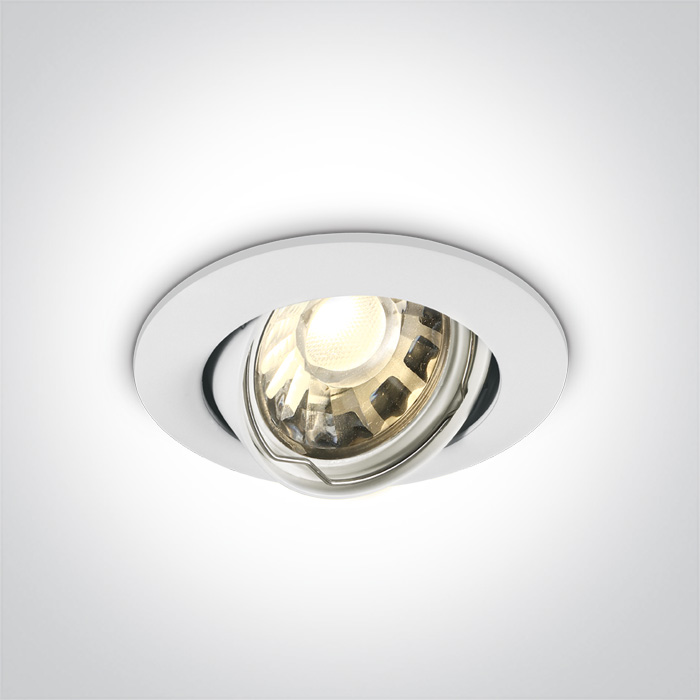

11105GU/W
Recessed adjustable MR16 spot with GU10 lamp holder.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
03 Recessed Spots Adjustable
Family
The Classic Adjustable GU10
Order Code
11105GU/W
Colour
White
Material
Die Cast
Shape
Circular
Height
87mm
Diameter
85mm
Cutout Hole Diameter
75mm
Recessed Ceiling
Yes
Depth Required
95mm
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
No
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
Replaceable lamp
Lamp Holder
GU10
Number of Lamps
1
Dimmable
N/A
Cable Length
15cm
F Mark
Illumination Data
Illumination Diagram
Packing Info
Box Length
9cm
Box Width
9cm
Box Height
5cm
Box Weight
0.140kg
Pcs/Carton
100
Barcode
5291889036050
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
2012
