07 Downlights Adjustable LED > The Pop Up Range
.jpg)
11128G/B/W

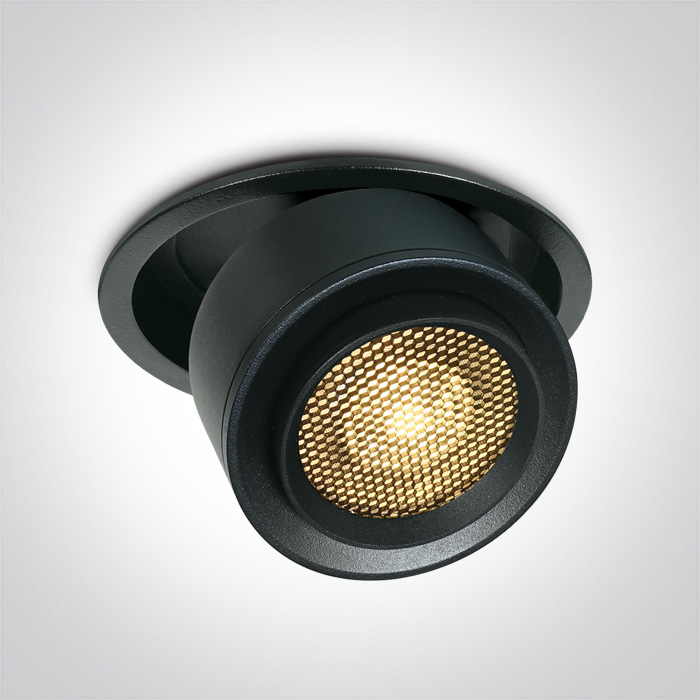

25W COB LED zoomable 15°-45° adjustable downlight with removable honeycomb.
Supplied with 600mA driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with 600mA driver.
Complies with standard EN60598-1 and any other specific standards.

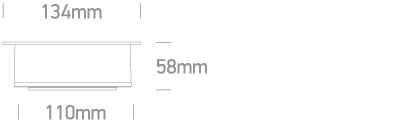

Dimensions
Downloads
Physical Specification
Item Group
07 Downlights Adjustable LED
Family
The Pop Up Range
Order Code
11128G/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
58mm
Diameter
134mm
Cutout Hole Diameter
120mm
Recessed Ceiling
Yes
Depth Required
70mm
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
External-Included
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
25W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
600mA
Safety Class
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
18-26,4W
Power Factor
0,95
Constant Current
Yes
600mA
30-44V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
0
Operating Temp
0
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
2500lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
15°-45°
Illumination Diagram
Packing Info
Box Weight
0.894kg
Pcs/Carton
18
Barcode
5291889076476
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
