13 Wall & Ceiling LED > LED Decorative Cylinders
12108T/B/W

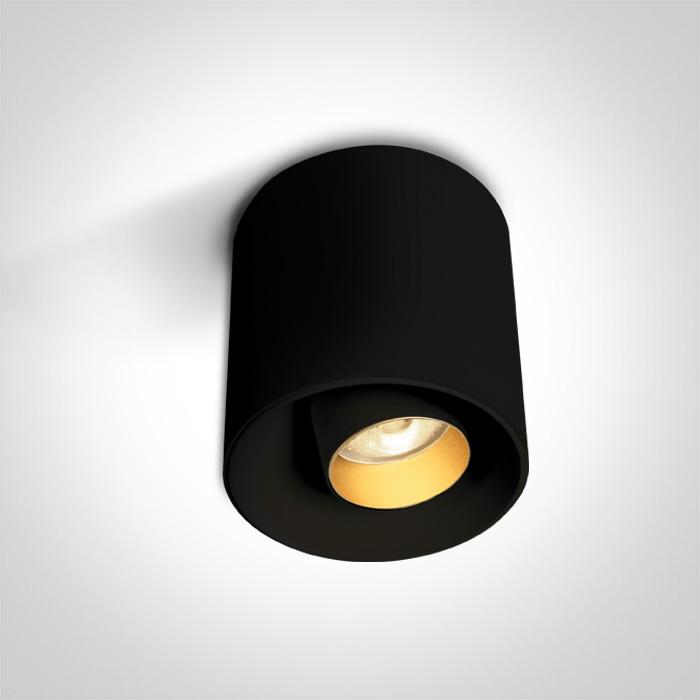

8W COB LED adjustable ceiling light.
Complete with black and brass reflectors.
Supplied with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with black and brass reflectors.
Supplied with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
LED Decorative Cylinders
Order Code
12108T/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
80mm
Diameter
70mm
Recessed Ceiling
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
9V
Safety Class
Power (Watts)
6,3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
1
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3,5-6,3W
Power Factor
0,8
Constant Current
Yes
700mA
5-9V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
0
Operating Temp
0
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
720lm
Light Efficiency
90lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.340kg
Pcs/Carton
30
Barcode
5291889076506
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
