13 Wall & Ceiling LED > The COB Indoor Round Cylinders
12110D/W/W

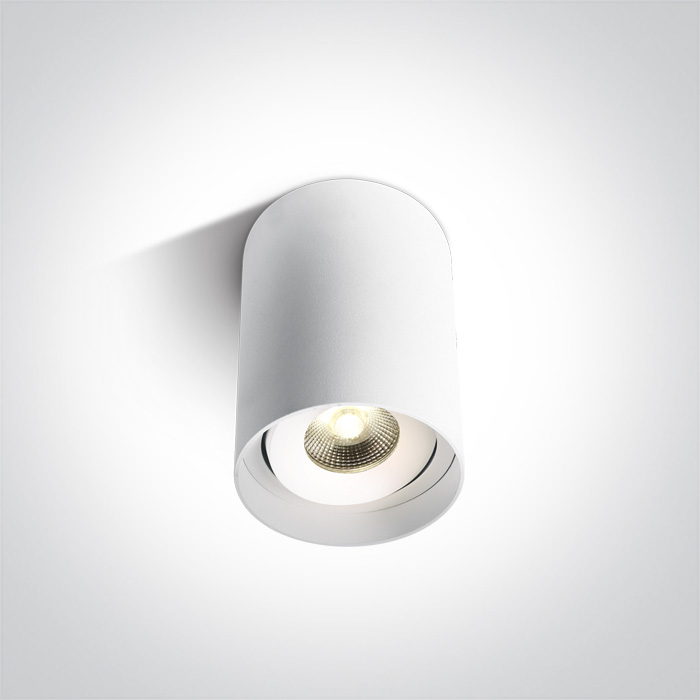

10W COB LED cylinder, with a modern design, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The COB Indoor Round Cylinders
Order Code
12110D/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
140mm
Diameter
90mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
18V
Power (Watts)
9W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4-12W
Power Factor
0,95
Constant Current
Yes
500mA
8-24V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
-20~50°C
Operating Temp
80°C
Illumination Data
Colour Temperature
3000K
Lumen Output
800lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Packing Info
Box Length
11cm
Box Width
11cm
Box Height
16,5cm
Box Weight
0.611kg
Pcs/Carton
18
Barcode
5291889045274
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
