13 Wall & Ceiling LED > The Backlight Cylinders
12120A/B/W
18W Downlight + 2W Uplight COB LED Cylinder. Gun Black Reflector.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

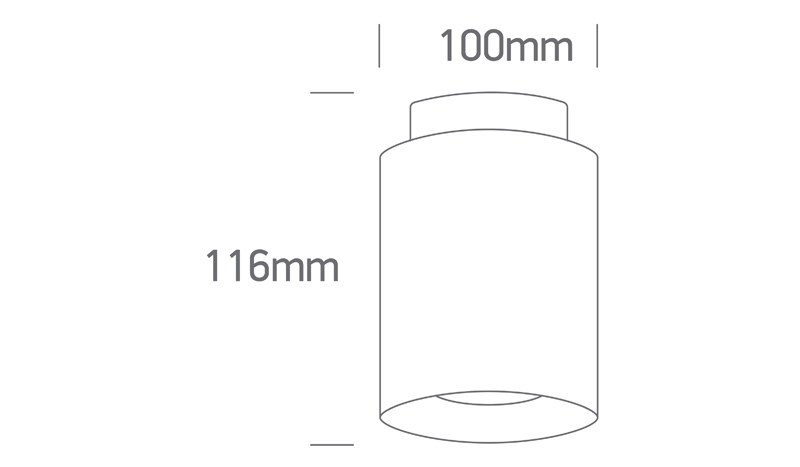

Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The Backlight Cylinders
Order Code
12120A/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
116mm
Diameter
100mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
18W+2W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
14-21,5W
Constant Current
Yes
500mA
28-43V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1800lm
Light Efficiency
90lm/W
CRI
90
Beam Angle
60°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.613kg
Pcs/Carton
30
Barcode
5291889079569
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
36000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
23
