24 Control & Dimming > Remote Controllers
20032

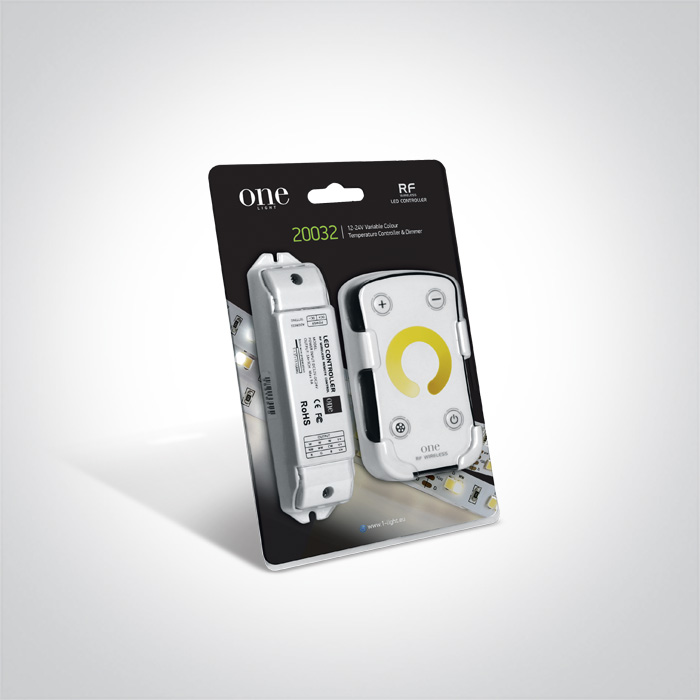

Remote controller for changing colour temperature from
daylight to warm white.
Suitable for use with LED strips 7835/DEW.
50 meters range, includes dimmer control and programme mode.
Complies with standard EN61347-1 and any other specific standards.
Suitable for use with LED strips 7835/DEW.
50 meters range, includes dimmer control and programme mode.
Complies with standard EN61347-1 and any other specific standards.

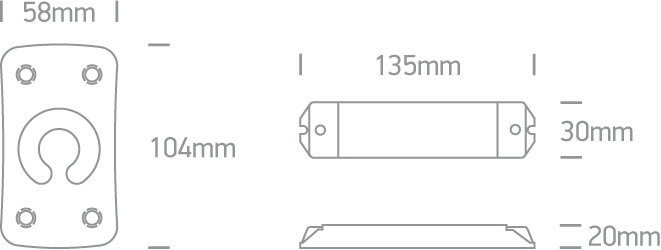

Dimensions
Downloads
Physical Specification
Item Group
24 Control & Dimming
Family
Remote Controllers
Order Code
20032
Shape
Rectangular
Indoor
Yes
Electrical Characteristics
Gear
Gear Type
Led Controller
Input Voltage
12-24V DC
Power (Watts)
36W/ch@12V 72W/ch@24V
Constant Voltage
Yes
12 V
Yes
24 V
Yes
Voltage Range
12-24V DC
Output
2ch x 3A
IP Rating
IP20
Safety Class
Dimmable
Yes
Operating Temp
-20-55°C
Housing Material
Plastic
Output Terminal
Connector
Packing Info
Box Weight
0.150kg
Pcs/Carton
50
Barcode
5291889046134
HS Code
8526920090
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
16
